Charge air cooling circulation pump, arrangement - GF09.41-P-3102-01MS

ENGINE 275.953 in MODEL 216, 221 up to Model Year 08 /AEJ 07 ENGINE 275.982 in MODEL 216, 221 up to Model Year 08 /AEJ 07

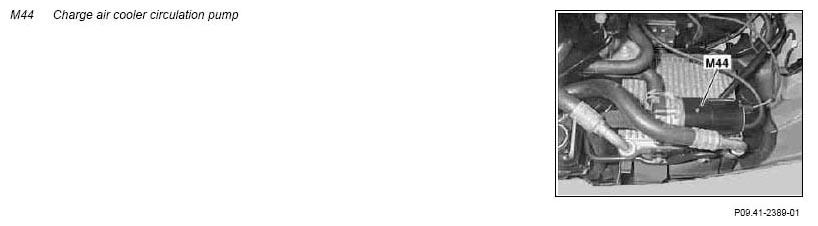

Fig 1: Identifying Charge Air Cooler Circulation Pump
G07630306Courtesy of MERCEDES-BENZ USA
