Remove/install cockpit switch group - AR54.25-P-1000SX

MODEL 216.3, 221.0 /1

OV00.01-P-1901-07A

Unless otherwise shown, instructions are shown by means of model series 221.

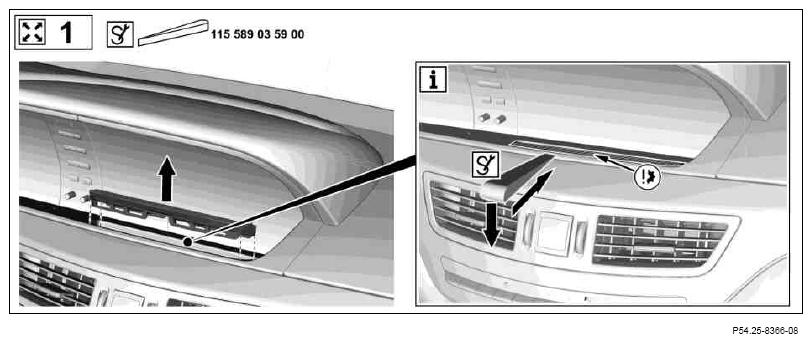

Fig 1: Removing Cockpit Switch Group (Step 1)

Courtesy of MERCEDES-BENZ USA

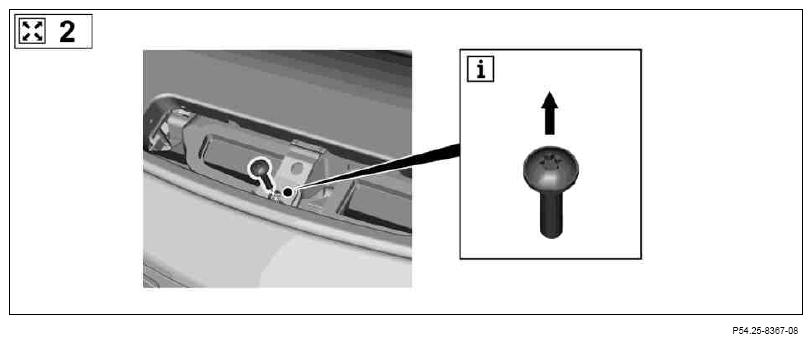

Fig 2: Removing Cockpit Switch Group (Step 2)

Courtesy of MERCEDES-BENZ USA

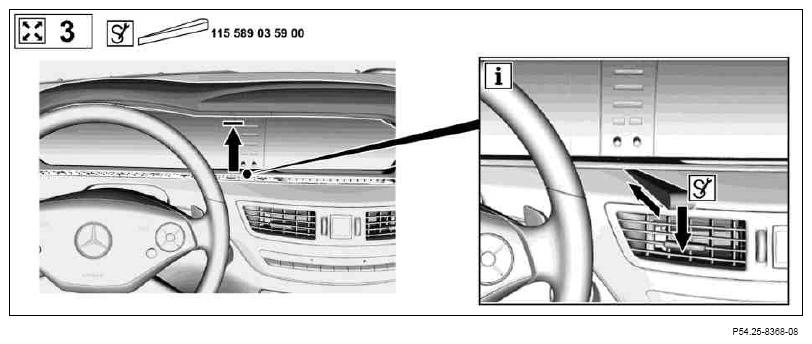

Fig 3: Removing Cockpit Switch Group (Step 3)

Courtesy of MERCEDES-BENZ USA

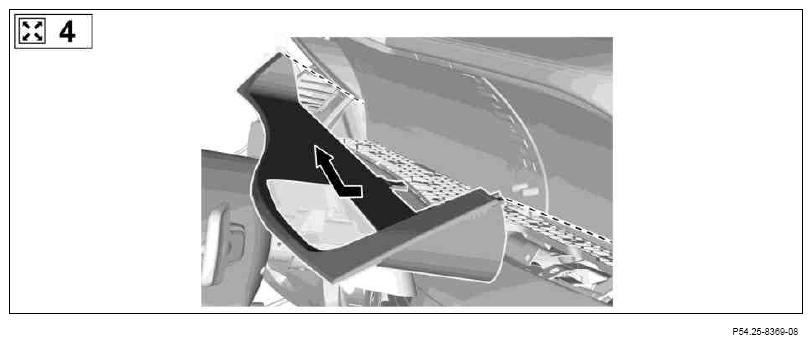

Fig 4: Removing Cockpit Switch Group (Step 4)

Courtesy of MERCEDES-BENZ USA

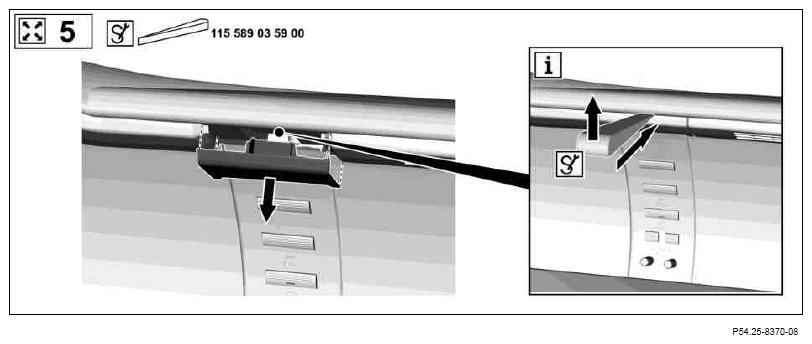

Fig 5: Removing Cockpit Switch Group (Step 5)

Courtesy of MERCEDES-BENZ USA

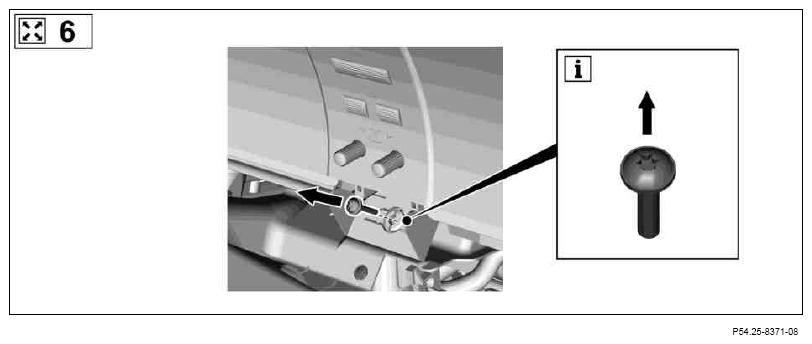

Fig 6: Removing Cockpit Switch Group (Step 6)

Courtesy of MERCEDES-BENZ USA

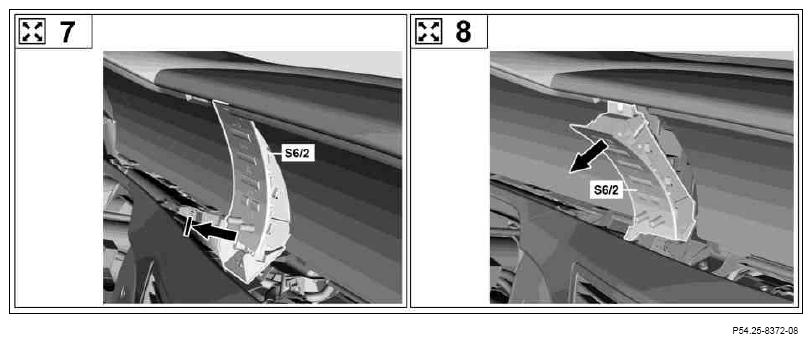

Fig 7: Removing Cockpit Switch Group (Step 7 & 8)

Courtesy of MERCEDES-BENZ USA

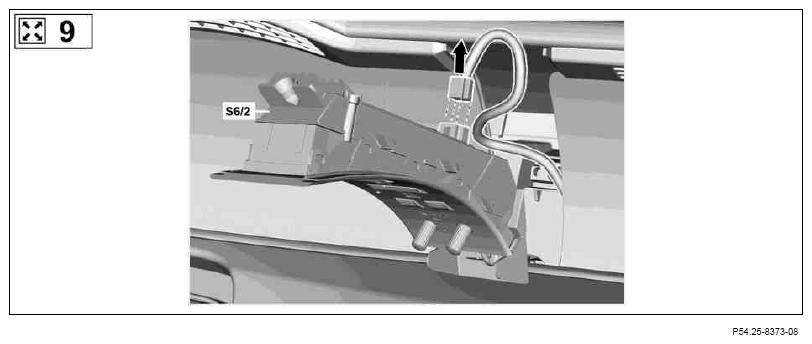

Fig 8: Removing Cockpit Switch Group (Step 9)

Courtesy of MERCEDES-BENZ USA

To install, reverse removal procedure.
