Meaning of symbols (Logos) for picture/picture documents - OV00.01-P-1901-07A

Modification notes

23.2.10 This document has been expanded by additional symbols

Symbols (Logos) for operation notes

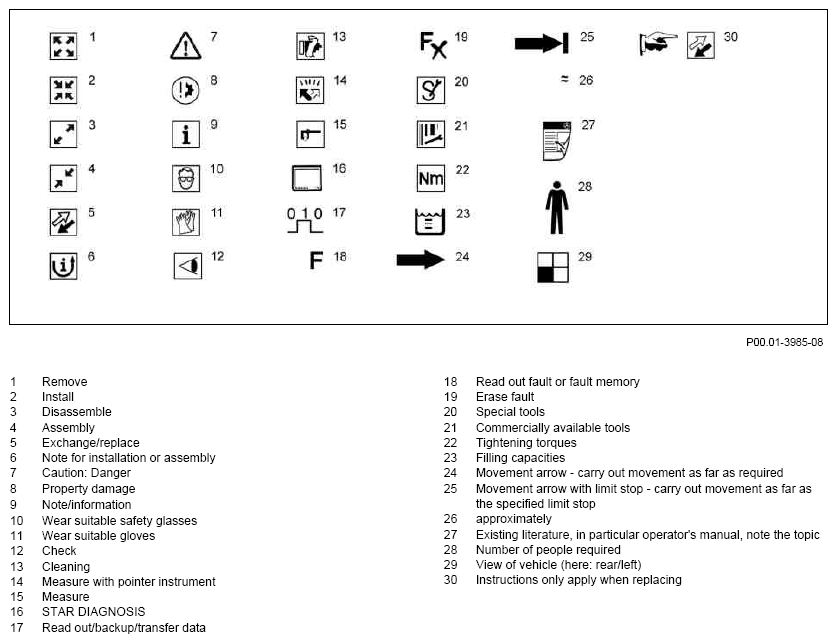

Fig 1: Identifying Symbols (Logos) For Operation Notes
G07543906Courtesy of MERCEDES-BENZ USA

Validities

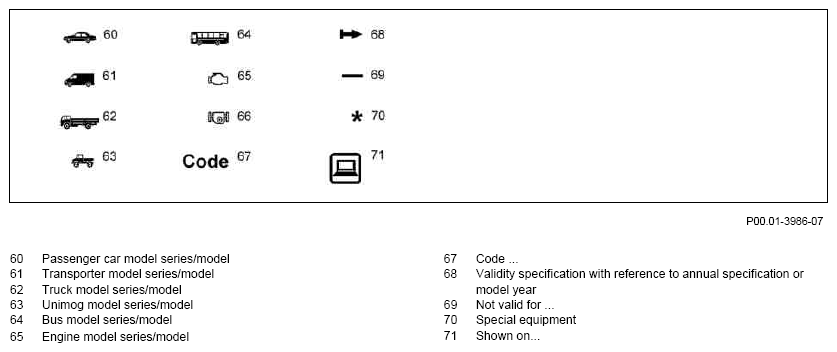

Fig 2: Identifying Symbols With Validities
G07543907Courtesy of MERCEDES-BENZ USA

Examples

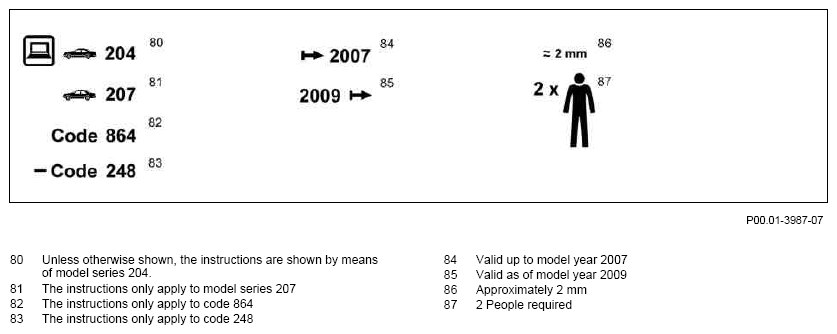

Fig 3: Examples Of Symbols
G07543908Courtesy of MERCEDES-BENZ USA
