Retrofit iPhone kit - AZ82.70-P-0013SX

MODEL 221.0 /1 only for vehicles with iPod

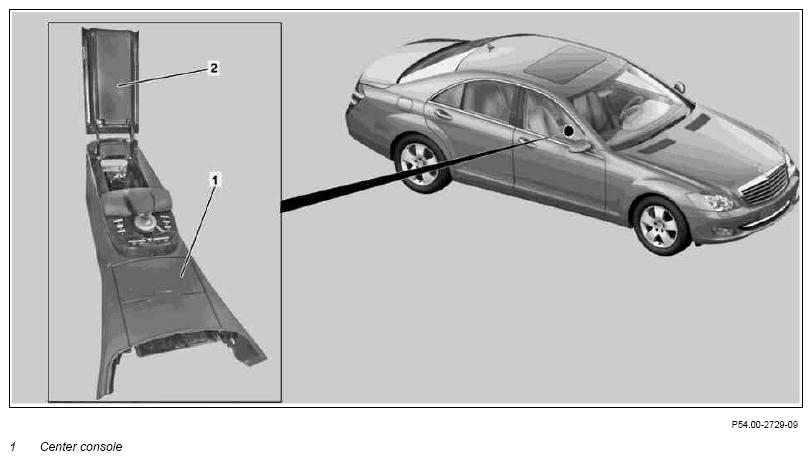

Fig 1: Identifying Center Console & Cover

Courtesy of MERCEDES-BENZ USA

	Removing
	Risk of explosion  caused by oxyhydrogen gas. Risk of poisoning and caustic burns  caused by swallowing battery acid. Risk of injury  caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
1	Disconnect battery ground line
			AR54.10-P-0003SX
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on battery		AH54.10-P-0001-01A
2	Remove COMAND controller unit
		Except CODE (529) HIGH Class Japan.	AR82.85-P-1100SX
		With code (529) HIGH Class Japan.	AR82.85-P-1100SY
3	Remove center console	Only detach and remove center console far enough to ensure the routing of lines.
			AR68.20-P-2000SX
4	Remove paneling of center console
		Rear paneling.	AR68.20-P-5169SX
5	Remove rear ashtray housing
			AR68.20-P-2420SX
6	Disassemble stowage compartment of center console	Only disassemble as far as necessary to complete cable duct.
		with code (386) Preinstallation for telephone "Cell phone" UPCI [UHI] system, with code (388) Telephone "Cell phone" UPCI [UHI] system.	AR68.20-P-2150SX
	Install
7	Retrofit iPhone wiring harness		AZ82.70-P-0001-04SX
8	Install remaining parts onto vehicle	Operation steps 6 to 1.
9	Carry out function check	Check iPhone functions as per iPhone operating instructions in vehicle.
