Disassemble/assemble center console - AR68.20-P-2150SX
MODEL 221.0 /1 up to 31.5.09 with CODE (386) Preinstallation for telephone "Cell phone", UPCI system with CODE (388) Telephone "Cell phone", UPCI system except CODE (800) Model year 2010

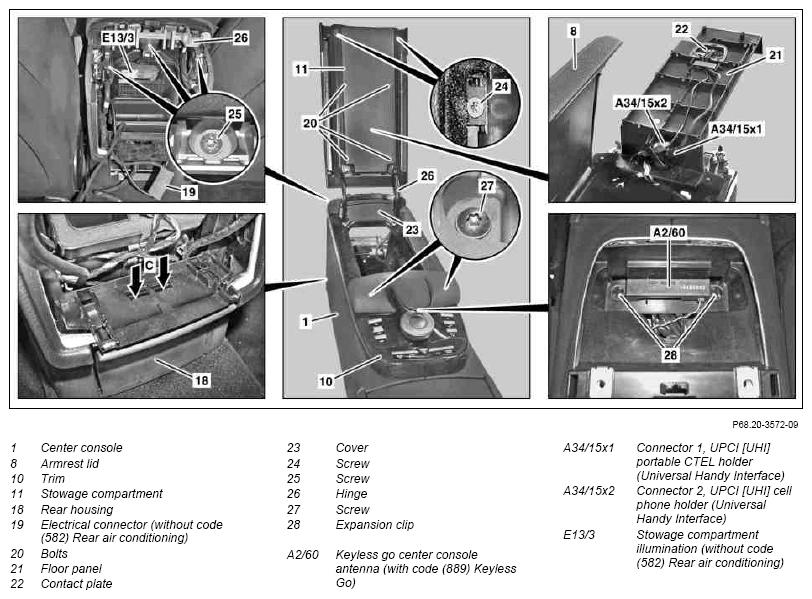

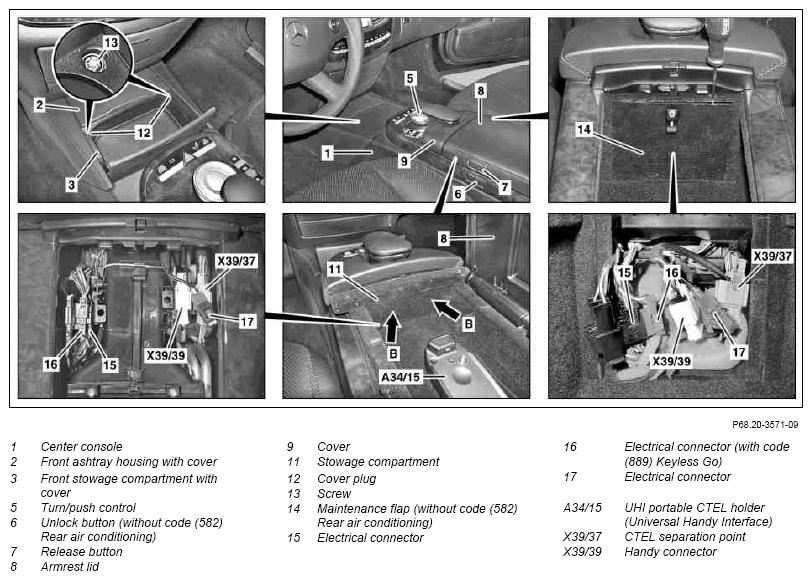

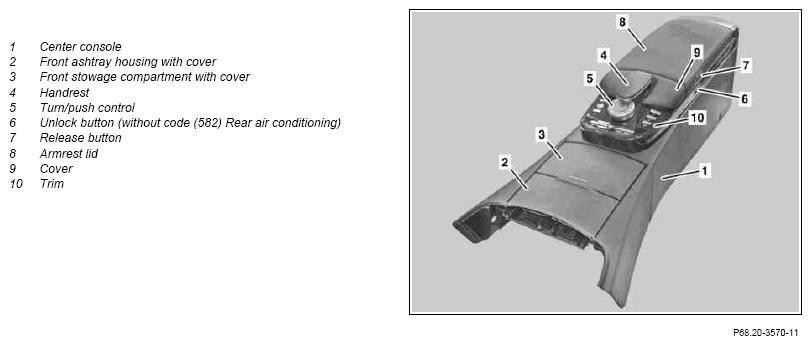

Shown on removed center console (1)
| Disassemble/assemble | |||
| 1 | Remove center console (1) | For removing stowage compartment (11), telephone wiring harness, wiring harness for front ashtray housing with cover (2) and for replacing basic carrier for center console (1). |
AR68.20-P-2000SX |
| 2 | Remove front stowage compartment with cover (3). | ||
| 3 | Remove front ashtray housing with cover (2) toward rear from center console (1) and disconnect electrical connector | ||
| 4 | Remove turn/push control (5) for front central operating unit. | AR54.21-P-0501SX | |
| 5.1 | Press release button (6) and open stowage compartment (11) | On vehicles without code (582) Rear air conditioning | |
| 5.2 | Actuate release button (7), open armrest cover (8), unlock stowage compartment (11) through holes (arrows B) at front with suitable tool and open. | On vehicles with code (582) Rear air conditioning | |
| 6 | Unclip covering (9) | Figure | |
| 7 | Switch off ignition and withdraw transmitter key or Keyless Go start/stop button from the EIS [EZS] control unit | ||
| 8 | Close stowage compartment ventilation via actuator wheel in maintenance flap (14) and unclip maintenance flap (14). | On vehicles without code (582) Rear air conditioning | |
| 9 | Expose electric wiring harness in center console (1) and expose electrical connector (15) as well as electrical connector (16) and disconnect | ||
| 10 | Remove rear paneling from center console (1). | AR68.20-P-5169SX | |
| 11 | Unlock rear housing (18) (arrows C), remove and disconnect electrical connector at rear. | ||
| 12 | Expose electrical connector on stowage compartment illumination (E13/3) as well as electrical connector (19) and disconnect | On vehicles without code (582) Rear air conditioning | |
| 13 | Open stowage compartment (11), unscrew bolts (20), close stowage compartment (11) and open armrest cover (8). | ||
| 14 | Remove UPCI cell phone holder (universal handy interface) (A34/15) and raise floor panel (21) with pulling hook, disconnect UPCI cell phone holder connector 1 (universal handy interface) (A34/15x1) and UPCI cell phone holder connector 2 (universal handy interface) (A34/15x2) | ||
| Fig 5 | |||
| 15 | Unclip contact plate (22) for UPCI cell phone holder (universal handy interface) (A34/15) from floor panel (21). | ||
| 16 | Open stowage compartment (11), unclip cover (23) and unscrew bolts (24). | ||
| 17 | Expose telephone electric wiring harness at side on hinge (26) and unscrew bolts (25). | ||
| 18 | Counterhold stowage compartment (11), pull out hinge (26) to the rear from stowage compartment (11) and remove from (1) center console | ||
| 19 | Remove bolts (27) and panel (10) | ||
| 20 | Remove front central operating unit from paneling (10). | ||
| Remove/install front central operating unit | AR54.21-P-0500SX | ||
| 21.1 | Remove keyless go center console antenna (A2/60) | On vehicles with code (889) Keyless go | |
| 22 | Expose telephone wiring harness at bottom of center console (1). | ||
| 23 | Remove telephone wiring harness from stowage compartment (11). | ||
| 24 | Remove wiring harness for front ashtray housing with cover (2). | ||
| 25 | Assemble in the reverse order |
