Remove/install stowage compartment - AR68.20-P-2320RT

MODEL 251

MODIFICATION NOTES

28.1.13

Remove DVD player bracket added

Operation steps 7, 8, 10,

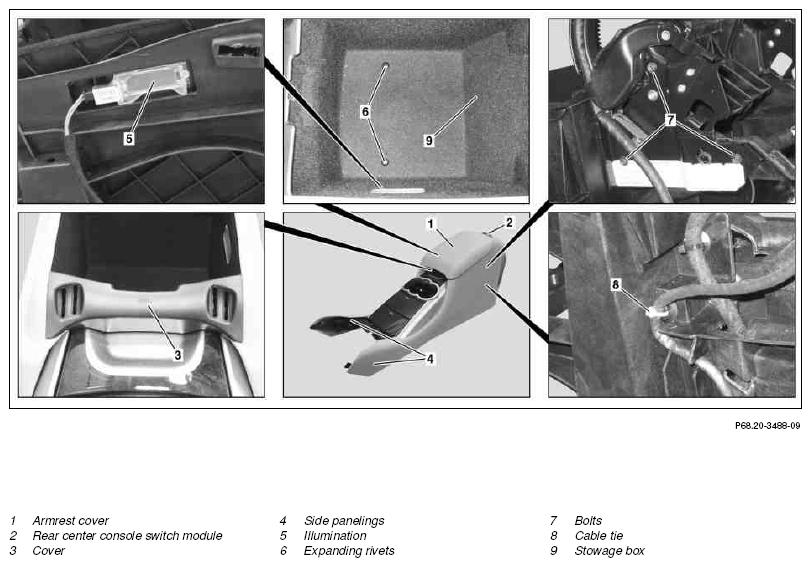

Fig 1: Identifying Stowage Compartment Remove/Install Component (1 Of 2)

Courtesy of MERCEDES-BENZ USA

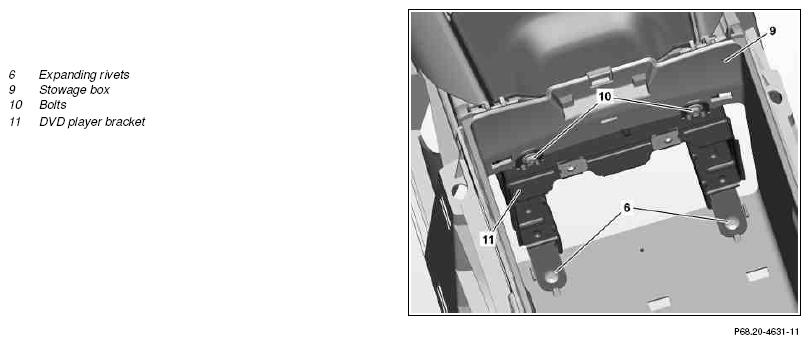

Fig 2: Identifying Stowage Compartment Remove/Install Component (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove center console		AR68.20-P-2000RT
2	Remove armrest cover (1) from center console		AR68.20-P-2370RT
3	Remove rear center console switch module (2)		AR68.20-P-2210RT
4	Unclip cover (3)
5	Unclip side panelings (4)
6	Unclip lamp (5)	Do not disconnect electrically.
7	Remove DVD player	MODEL 251 as of model year 2008 with CODE 864 (Rear entertainment system)	AR82.60-P-7505RTA
8	Remove bolts (10)	MODEL 251 as of model year 2008 with CODE 864 (Rear entertainment system)
9	Remove expansion rivets (6)
10	Remove DVD player bracket (11) from center console	MODEL 251 as of model year 2008 with CODE 864 (Rear entertainment system)
11	Remove stowage tray for mobile phone		AR82.70-P-8931RT
		Do not disconnect electrically.
12	Remove screws (7) on left and right
13	Lift upper stowage box
14	Remove stowage compartment (9)
15	Install in the reverse order
