Remove/install center console - AR68.20-P-2000RT

MODEL 251

MODIFICATION NOTES

28.1.13

"upper cover", added

Operation step 9

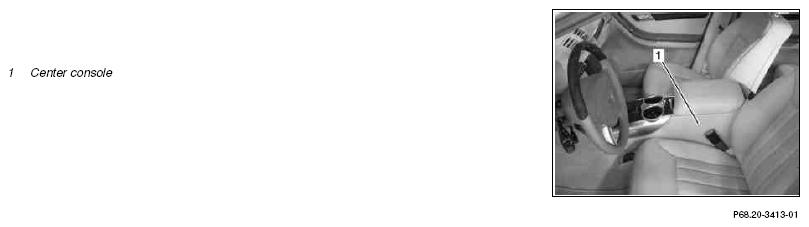

Fig 1: Identifying Center Console Remove/Install Component (1 Of 2)

Courtesy of MERCEDES-BENZ USA

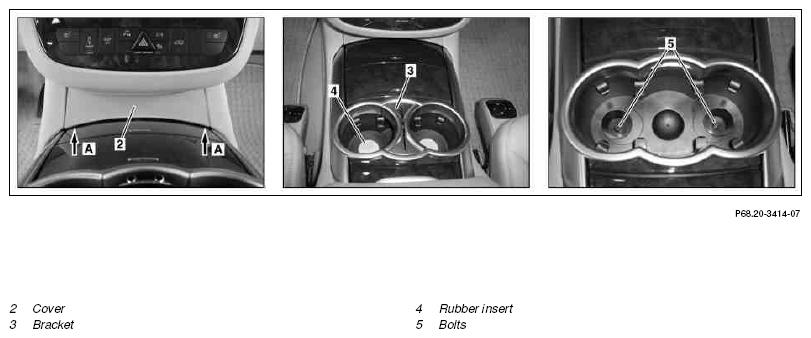

Fig 2: Identifying Center Console Remove/Install Component (2 Of 2)

Courtesy of MERCEDES-BENZ USA

Shown with code 494 (USA version)

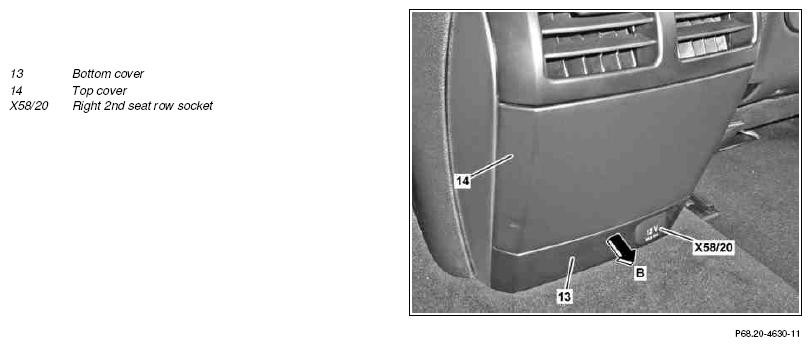

Fig 3: Identifying Center Console Remove/Install Component (1 Of 4)

Courtesy of MERCEDES-BENZ USA

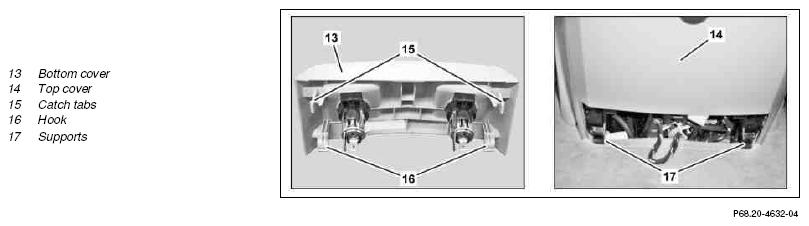

Fig 4: Identifying Center Console Remove/Install Component (2 Of 4)

Courtesy of MERCEDES-BENZ USA

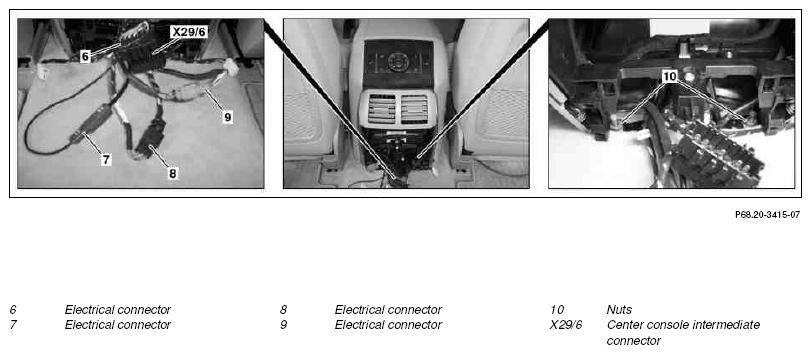

Fig 5: Identifying Center Console Remove/Install Component (3 Of 4)

Courtesy of MERCEDES-BENZ USA

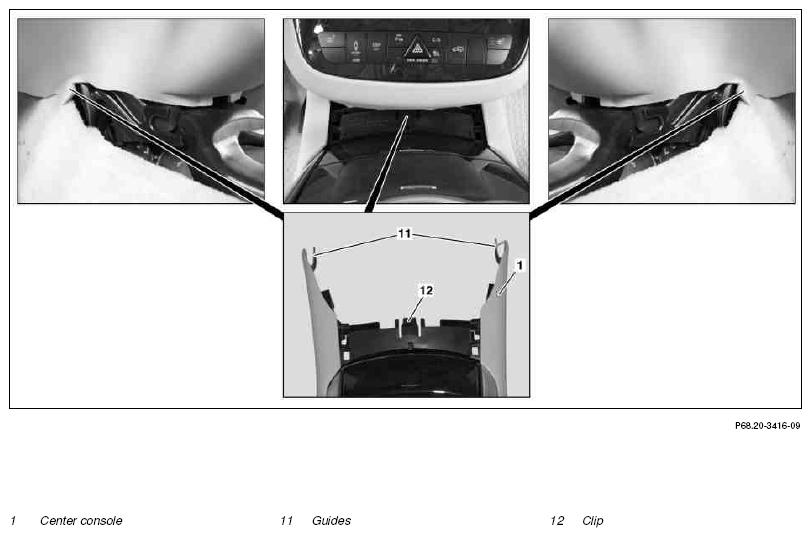

Fig 6: Identifying Center Console Remove/Install Component (4 Of 4)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Unclip cover (2)	Mounting wedge	Figure
2	Remove bracket (3)	MODEL 251 with CODE 494 (US version)
3	Open stowage compartment	MODEL 251 without CODE 494 (US version) The stowage compartment is installed instead of the bracket (3).
4	Remove rubber inserts (4)
5	Remove bolts (5)	Check mechanism of front ashtray for proper function, if necessary loosen threaded connection of center console (1) and tighten center console (1) without tension.
6	Remove rear ashtray	MODEL 251 with CODE 301 (Ashtray package) without CODE 575 (Centre console for 2nd row of seats)
			AR68.20-P-2230RT
7	Unclip lower cover (13) at top (arrow B)	MODEL 251 with CODE 301 (Ashtray package) with CODE 575 (Centre console for 2nd seat row) MODEL 251 without CODE 301 (Ashtray package) Insert hook (16) on lower cover (13) into mounts (17). Ensure that hook (16) is seated correctly in mounts (17) Catch lug (15) should arrest audibly.
		Clip remover	Fig 8
8	Disconnect electrical connector from left 2nd seat row socket (X58/19) and right 2nd seat row socket (X58/20)	MODEL 251 with CODE 301 (Ashtray package) with CODE 575 (Centre console for 2nd seat row) MODEL 251 without CODE 301 (Ashtray package)
9	Remove upper trim panel (14)	MODEL 251 with CODE 301 (Ashtray package) with CODE 575 (Centre console for 2nd seat row) MODEL 251 without CODE 301 (Ashtray package)
		Clip remover	Fig 8
10	Detach electrical connector (6) from center console intermediate connector (X296)
11	Detach electrical connector (6 to 9)
12	Unscrew nuts (10)	Ensure that center console (1) is installed without tension.
		Nut, center console to body	*BA68.20-P-1001-01F
13	Unclip clip (12)	Press downwards.
14	Lift center console (1) at rear, pull towards the rear and remove through rear door	Ensure that guides (11) are seated correctly. Clips (12) must latch.
15	Install in the reverse order

CENTER CONSOLE

Number	Designation		MODEL 251
BA68.20-P-1001-01F	Nut, center console to body	Nm	20

Fig 7: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 8: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
