Retrofit rear entertainment system - AN82.60-P-0013RT

MODEL 251 with CODE (866) Preinstallation for rear entertainment system

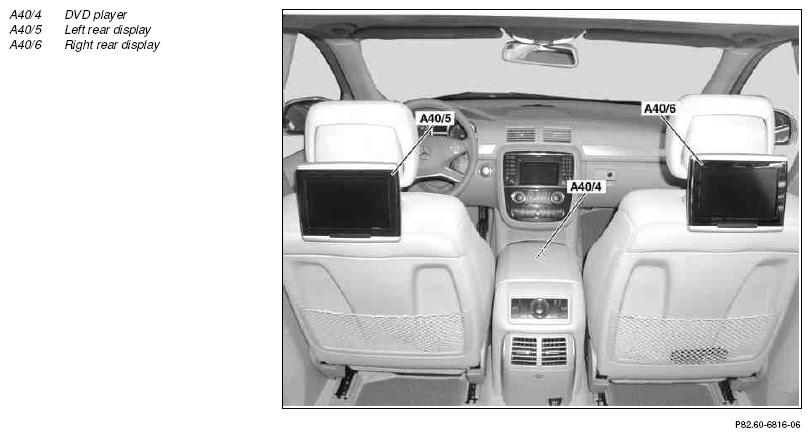

Fig 1: Identifying Retrofit Rear Entertainment System Components

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

17.1.11

Document retrofitted equipment using vehicle documentation (VeDoc) added

Step 9

	Remove
1	Remove back shell at left and right front seat backrest		AR91.10-P-1915RT
2	Remove stowage box of front center console	The stowage box is no longer required.	AR68.20-P-2320RT
	Install
3	Retrofit DVD player (A40/4)		AN82.60-P-0013-01RT
4	Retrofit left rear display (A40/5) and right rear display (A40/6)		AN82.60-P-0013-02GZ
5	Install back shell at left and right front seat backrest		AR91.10-P-1915RT
6	Connect Star Diagnosis		AD00.00-P-2000-04A
7	Enter special equipment on the vehicle data card and the online vehicle data card	Enter code (864) Rear entertainment system. ↓
7		Initial startup of retrofits and modifications	AN00.01-P-1001-01V
8	Disconnect Star Diagnosis		AD00.00-P-2000-04A
9	Document retrofitted equipment using vehicle documentation (VeDoc)	Attach "Rear entertainment system retrofitted as per AN82.60-P-0013RT " note under field organization texts to design group 82.
10	Carry out function test

PARTS ORDERING NOTES

Part no.	Designation	Quantity
see ODUS	RSES parts kit, country code 1	1
