Check AIRmatic for leaks - AR32.22-P-8100RT

MODEL 251

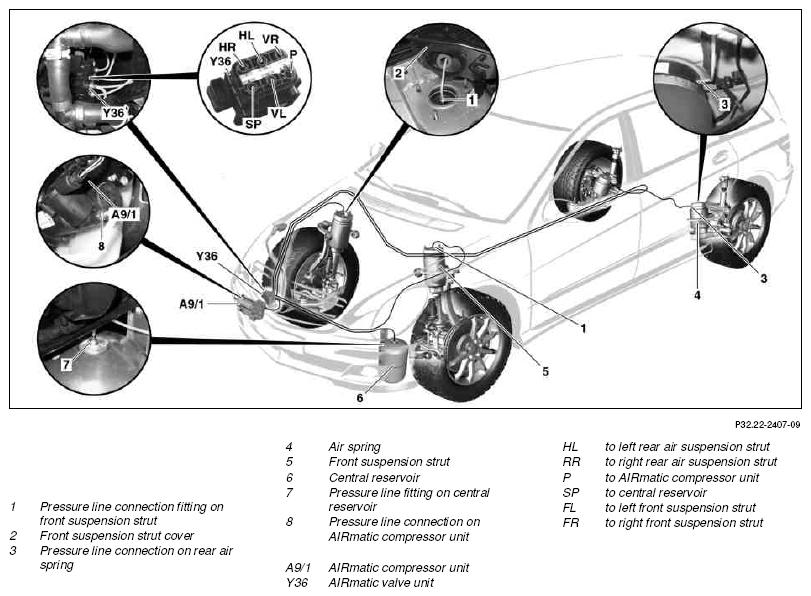

Fig 1: Checking Airmatic For Leaks - Shown On Model 251 With Airmatic

Courtesy of MERCEDES-BENZ USA

Shown on model 251 with AIRmatic (air suspension with level adjustment and adaptive damping system ADS), code 489

With code 488 steel/air suspension

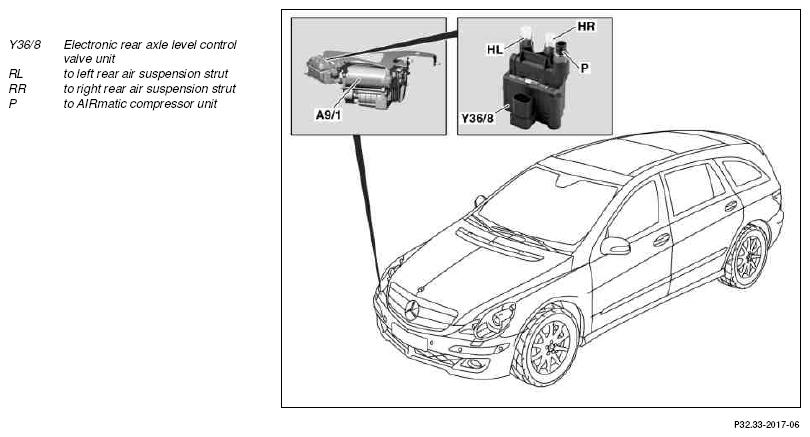

Fig 2: Identifying Airmatic Compressor Unit Components - Shown With Code 488

Courtesy of MERCEDES-BENZ USA

	Checking
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes on AIRmatic		AH32.22-P-1000-02RT
1	Open engine hood and raise to vertical position		AR88.40-P-1000RT
2	Spray pressure line connection on the valve unit (Y36 or Y36/8) with leak detection spray	Wait approx. 10 to 15 minutes after spraying. This allows smaller leaks to be detected (bubbles form). Larger leaks are visible immediately. In the event of a defective pressure line connection on the valve unit (Y36 or Y36/8): ↓
		Repair pressure line connection, see Repair AIRmatic pressure line connection.	AR32.22-P-2001-02RT
			Figure
			Figure
		Leak detection spray	*BR00.45-Z-1002-03A
		for USA	*BR00.45-Z-1004-03A
3	Raise vehicle		AR00.60-P-1000RT
4	Spray leak detection spray onto compressed air connection at rear air spring (3) on both sides of vehicle	Wait approx. 10 to 15 minutes after spraying. This allows smaller leaks to be detected (bubbles form). Larger leaks are visible immediately. With a defective pressure line connection on the rear air spring (3):↓
		Repair pressure line connection, see Repair AIRmatic pressure line connection.	AR32.22-P-2001-02RT
			Figure
			Figure
		Leak detection spray	*BR00.45-Z-1002-03A
		for USA	*BR00.45-Z-1004-03A
5	Remove fender liner front section in front fender	Only on vehicles with AIRmatic (air suspension with level adjustment and adaptive damping system ADS), code 489. Front section of fender liner in left front fender.	AR88.10-P-1310RT
6	Spray leak detection spray onto compressed air connection on central reservoir (7)	Only on vehicles with AIRmatic (air suspension with level adjustment and adaptive damping system ADS), code 489. Wait approx. 10 to 15 minutes after spraying. This allows smaller leaks to be detected (bubbles form). Larger leaks are visible immediately. With a defective pressure line connection on the central reservoir (7): ↓
		Repair AIRmatic pressure line connection.	AR32.22-P-2001-02RT
			Figure
			Figure
		Leak detection spray	*BR00.45-Z-1002-03A
		for USA	*BR00.45-Z-1004-03A
7	Remove fender liner front section in front fender	Front section of fender liner in right front fender.	AR88.10-P-1310RT
8	Spray leak detection spray onto compressed air connection on AIRmatic compressor unit (8)	Wait approx. 10 to 15 minutes after spraying. This allows smaller leaks to be detected (bubbles form). Larger leaks are visible immediately. With a defective pressure line connection on the AIRmatic compressor unit (8): ↓
		Repair AIRmatic pressure line connection.	AR32.22-P-2001-02RT
			Figure
			Figure
		Leak detection spray	*BR00.45-Z-1002-03A
		for USA	*BR00.45-Z-1004-03A
9	Install front section of fender liner in front fender		AR88.10-P-1310RT
10	Lower vehicle		AR00.60-P-1000RT
11	Remove partition wall between wheel wells	Only on vehicles with AIRmatic (air suspension with level adjustment and adaptive damping system ADS), code 489.	AR62.30-P-2400RT
12	Remove front suspension strut cover (2) and spray pressure line connection on front suspension strut (1) on both sides of the vehicle with leak detection spray	Only on vehicles with AIRmatic (air suspension with level adjustment and adaptive damping system ADS), code 489. Wait approx. 10 to 15 minutes after spraying. This allows smaller leaks to be detected (bubbles form). Larger leaks are visible immediately. If the pressure line connection on the front suspension strut (1) is defective: ↓
		Repair AIRmatic pressure line connection.	AR32.22-P-2001-02RT
			Figure
			Figure
		Leak detection spray	*BR00.45-Z-1002-03A
		for USA	*BR00.45-Z-1004-03A
13	Remove/install between the wheel well liners	Only on vehicles with AIRmatic (air suspension with level adjustment and adaptive damping system ADS), code 489.	AR62.30-P-2400RT
14	Close engine hood		AR88.40-P-1000RT

Fig 3: Identifying Slitting Knife (000 589 12 28 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Wrench Socket (211 589 00 09 00)

Courtesy of MERCEDES-BENZ USA
