Remove/install fender liner front section in front fender - AR88.10-P-1310RT

MODELS 251

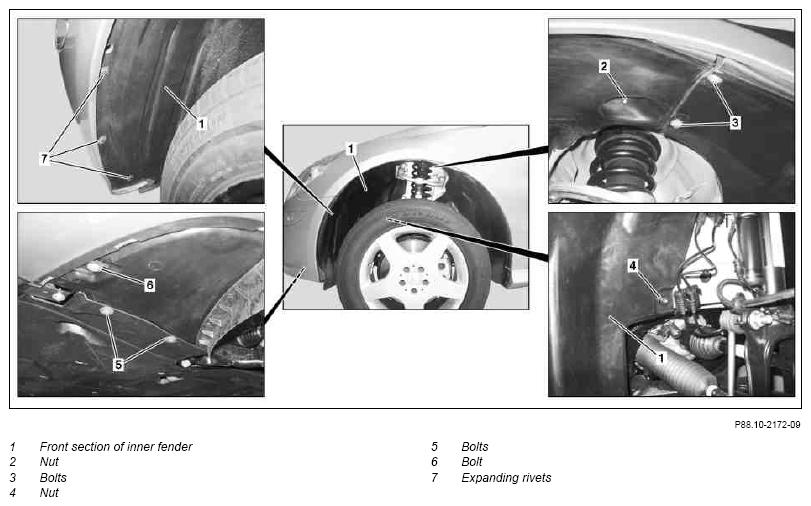

Fig 1: Identifying Fender Liner Front Section In Front Fender Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/Install
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the lifting platform and position the four support plates below the hoist support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
1	Lift/jack up vehicle		AR00.60-P-1000RT
2	Unscrew nut (2)
3	Remove bolts (3)
4	Unscrew nut (4)
5	Loosen the screws (5).
6	Unscrew bolt (6)
7	Remove expansion rivets (7)
8	Lift rear section of fender liner in fender	Lift rear section of fender liner on upper overlap with mounting wedge until front section of fender liner (1) can be removed from fender
		Mounting wedge	Figure
9	Remove front fender liner section (1) from fender
10	Install in the reverse order
