Removing and installing fuse and relay box in engine compartment, right front - AR54.15-P-1258RT
MODEL 251
Engine compartment, right front

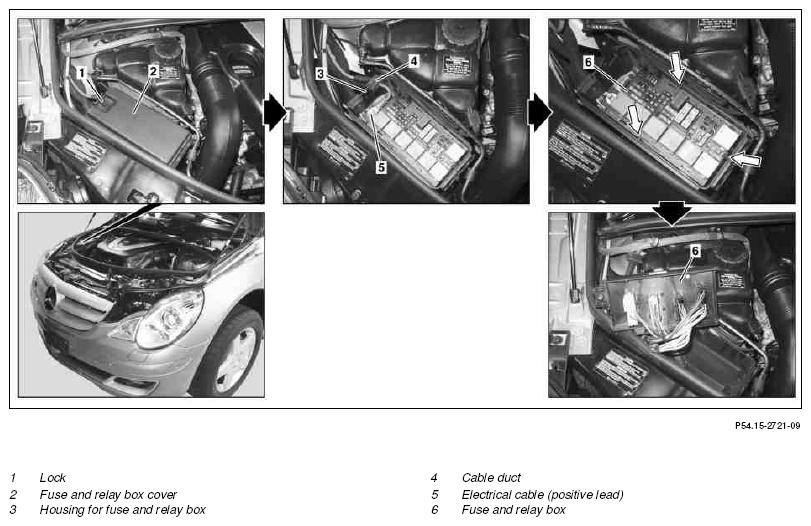

Fig 1: Identifying Engine Compartment Fuse And Relay Box Remove/Install Components - Shown On Model 251.075
Illustrated on model 251.075
| Remove/install | |||
| Risk of explosion caused by escaping oxyhydrogen gas. Risk of injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte (contains diluted sulfuric acid) or metal spatter due to short circuit. Risk of burn injuries caused by short circuit. Risk of poisoning caused by swallowing battery electrolyte (contains diluted sulfuric acid) or absorption of lead over the skin or orifices | No fire, sparks, open flames or smoking. Wear acid-resistant gloves and clothing and safety glasses with side guards. Do not place any conductive objects on the battery and avoid any short circuit from battery positive to ground. Only fill liquid battery electrolyte (diluted sulfuric acid) into suitable and appropriately marked containers. |
AS54.10-Z-0001-01A | |
| 1 | Disconnect battery ground cable | AR54.10-P-0003RT | |
| 2 | Detach lock (1) and remove the cover of the fuse and relay box (2) | ||
| 3 | Detach electrical line (positive line) (5) and pull cable conduit (4) upwards out of housing for fuse and relay box (3) | ||
| *BA54.15-P-1001-01E | |||
| 4 | Loosen fuse and relay box (6) from housing for fuse and relay box (3) | ||
| 5 | Turn over the fuse and relay box (6) and separate the electrical connectors | ||
| 6.1 | Remove component set from fuse and relay box (6) | ||
| 7 | Install in the reverse order | ||
| 8 | Perform basic programming | AR00.19-P-0200RT |
FUSE AND RELAY BOX
| Number | Designation | Model 251 | |
|---|---|---|---|
| BA54.15-P-1001-01E | Nut, electrical line (positive line) to fuse and relay box | Nm | 12 |
