Remove/install left or right front axle RPM sensor - AR42.30-P-0712RT

MODELS 251

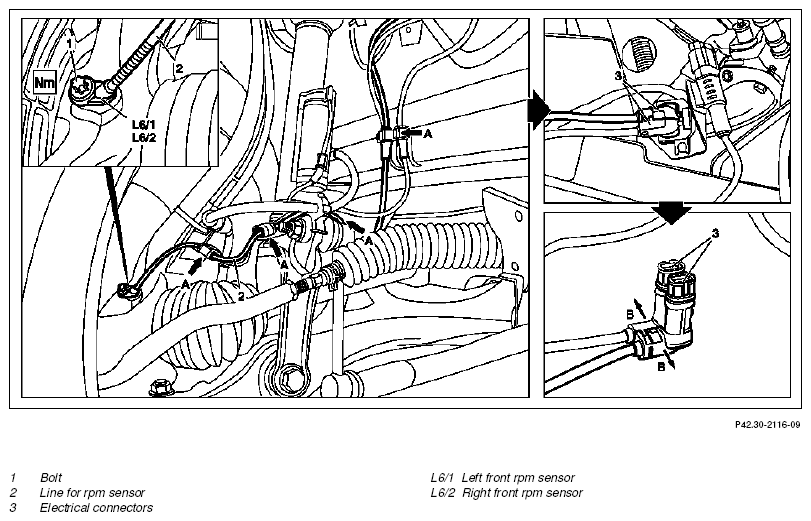

Fig 1: Identifying Left/Right Front Axle RPM Sensor Remove/Install Components - Illustrated On Right Side Of Vehicle

G10121022

Courtesy of MERCEDES-BENZ USA

Illustrated on right side of vehicle

	Remove/Install
	Information on preventing damage to electronic components due to electrostatic discharge	All models	AH54.00-P-0001-01A
1	Turn steering to side on which repair work is to be performed
2	Switch off ignition and remove the transmitter key from the EIS [EZS] control unit	On vehicles with Keyless Go, code 889: Press keyless go start/stop button repeatedly until ignition is switched off Remove transmitter key from vehicle and store it in a location beyond its transmission range (at least 2 m).
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
3	Raise vehicle with lifting platform		AR00.60-P-1000RT
4	Remove the front section of the fender liner in the left or right front fender		AR88.10-P-1310RT
5	Remove bolt (1) and pull left front RPM sensor (L6/1) or right front RPM sensor (L6/2) out of steering knuckle	Fit new bolt (1).
	Notes on self-locking nuts and bolts	All models	AH00.00-N-0001-01A
	Notes on self-locking nuts and bolts		*BA42.30-P-1001-01I
6	Disconnect electrical connectors (3) from body socket
7	Disconnect electrical connectors (3) from each other (arrows B)	Carefully disconnect electrical connectors (3).
8	Remove line for RPM sensor (2) on left or right side of vehicle from brackets (arrows A)	Pay attention to correct routing of the line for the RPM sensor (2). Route the line of the RPM sensor (2) so that there is no crossover.
9	Install in the reverse order
10	Read out fault memory and erase	STAR DIAGNOSIS system	*WH58.30-Z-1048-13A
	Connect STAR DIAGNOSIS and read out fault memory	STAR DIAGNOSIS system	AD00.00-P-2000-04A

FRONT AXLE RPM SENSOR

Number	Designation		Type 251
BA42.30-P-1001-01I	Self-locking bolt, front axle RPM sensor to steering knuckle	Nm	8

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1048-13A	STAR DIAGNOSIS system, Compact Passenger Car	6511 1801 00
