Remove/install rear-end door handle strip - AR72.20-P-3650RT

MODEL 251

Shown on vehicle with Keyless Go, code 889

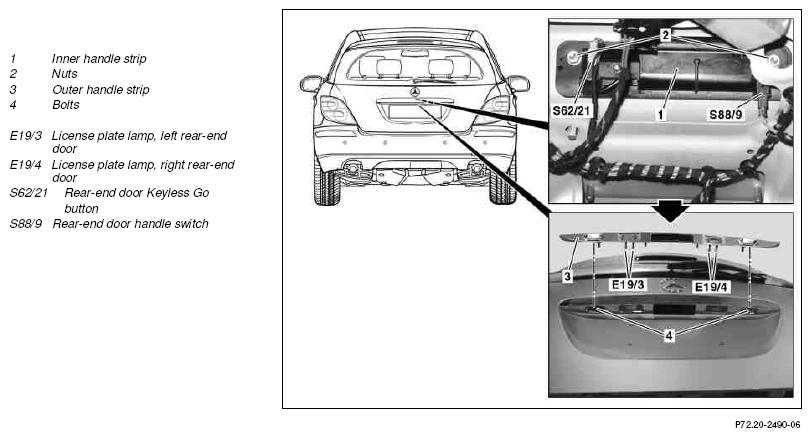

Fig 1: Identifying Rear-End Door Handle Strip Remove/Install Components - Shown On Code 889

Courtesy of MERCEDES-BENZ USA

	Remove/Install
	Risk of injury  caused by fingers being jammed or pinched  when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	When moving components, ensure that no body parts or limbs are within the operating range of moving parts.	AS00.00-Z-0011-01A
1	Remove door lining on rear-end door		AR72.20-P-3520RT
2	Unscrew nuts (2) from inner handle strip (1)	On inside of rear-end door
3	Disconnect electrical connectors on Keyless Go rear-end door button (S62/21) and rear-end door handle switch (S88/9) from inner handle strip (1)
4	Remove inner handle strip (1)
5	Unscrew bolts (4) from outer handle strip (3)	On outside of rear-end door
6	Remove outer handle strip (3)	Risk of breakage! Do not scratch paint.
7	Disconnect connector from left rear-end door license plate lamp (E19/3) and right rear-end door license plate lamp (E19/4)
8	Install in the reverse order
