Remove/install bottom sections of soundproofing - AR94.30-P-5300RT

MODEL 251 with ENGINE 642

Shown on vehicles without USA version, code 494

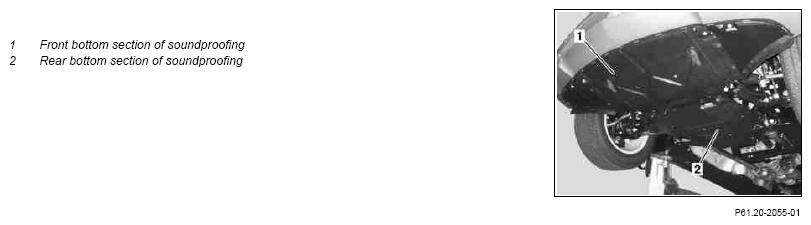

Fig 1: Identifying Bottom Sections Of Soundproofing Remove/Install Components - Shown On Code 494

Courtesy of MERCEDES-BENZ USA

Shown on bottom sections of soundproofing, on vehicles without USA version, code 494

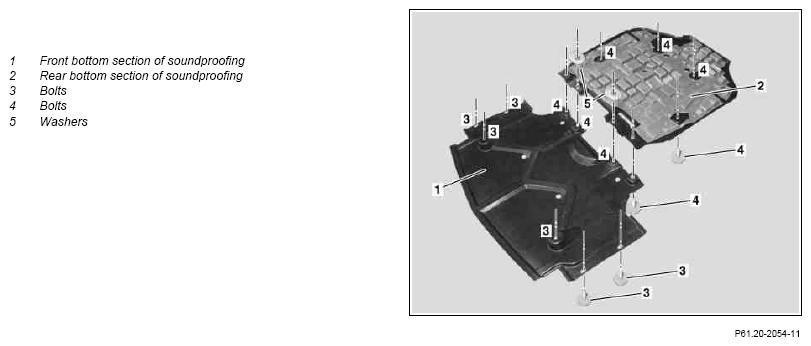

Fig 2: Identifying Bottom Sections Of Soundproofing Remove/Install Components - Shown On Code 494

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
1	Lift vehicle with two-post lift		AR00.60-P-1000RT
2.1	Remove bolts (4)	Except vehicles with USA version, code 494. 8 bolts (4).
3.1	Remove rear bottom section of soundproofing (2).	Except vehicles with USA version, code 494. Do not loose washers (5) when removing rear bottom section of soundproofing (2). Ensure that washers (5) are seated correctly when installing.
4	Remove bolts (3)	6 bolts (3).
5	Remove front bottom section of soundproofing (1).
6	Install in the reverse order
