Removing and installing washer fluid reservoir of windshield washer system - AR82.35-P-6000RT

MODELS 251

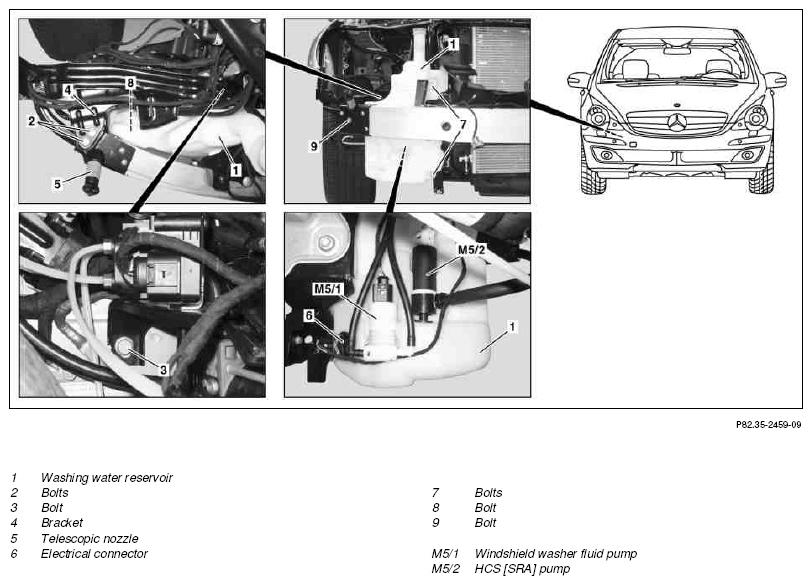

Fig 1: Identifying Washer Fluid Reservoir Of Windshield Washer System Remove/Install Components - Shown On Code 600

Courtesy of MERCEDES-BENZ USA

Shown on vehicle with headlamp cleaning system, code 600:

	Remove/install
1	Remove front bumper		AR88.20-P-2000RT
2	Remove headlamp on the right-hand side of vehicle		AR82.10-P-4730RT
3	Remove bolts (2) and bolt (3) and place compressor with bracket (4) outside the working area	Do not disconnect electrical connectors.
			*BA32.22-P-1005-03C
			*BA32.22-P-1006-03C
4.1	Remove bolt (9) and pull out the telescopic nozzle (5) towards the front	Only for vehicles with headlamp cleaning system, code 600. Pull out the telescopic nozzle (5) towards the front until the washer fluid reservoir (1) can be removed.
5	Remove windshield washer fluid pump (M5/1) from the washer fluid reservoir (1)	Collect escaping washer fluid in a suitable container
6	Disconnect plug and socket connection (6)
7.1	Remove HCS [SRA] pump (M5/2)	Only for vehicles with headlamp cleaning system, code 600. Collect escaping washer fluid in a suitable container
8	Remove bolts (7) and bolt (8) and remove washer fluid reservoir (1) downwards
9	Install in the reverse order
10	Fill washer fluid reservoir (1)
	Windshield washer system - inspect fluid level, adjust to correct level		AP82.35-P-8210RT
11	Check windshield washer system for proper function	Switch on ignition and check the function of the pump by actuating the combination switch. A sufficient quantity of washer fluid must spray out of the spray nozzles.

AIR SUSPENSION

Number	Designation		Model 251 with all-round level control system (code 489)	Model 251 without all-round level control system (code 489)
BA32.22-P-1005-03C	Bolt, compressor bracket to crossmember	Nm	20	20
BA32.22-P-1006-03C	Bolt of compressor bracket to front end assembly	Nm	20	20
