Remove/install windshield washer system washer fluid hose - AR82.35-P-6980RT

MODEL 251

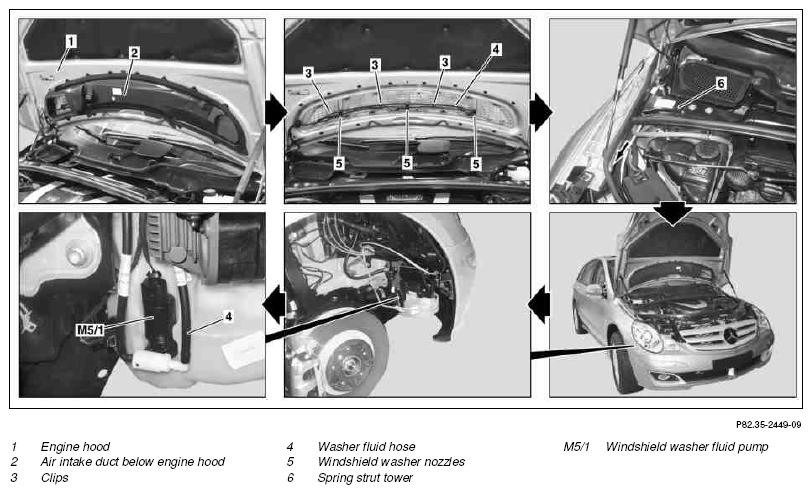

Fig 1: Identifying Windshield Washer System Washer Fluid Hose Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Open engine hood (1) and move to upright position		AR88.40-P-1000RT
2	Remove air intake duct below engine hood (2)		AR83.25-P-1407RT
3	Remove washer fluid hose (4) from windshield washer nozzles (5).	Risk of breakage.
4	Unclip washer fluid hose (4) from clips (3) of air inlet grate.
5	Pull washer fluid hose (4) downward through spring strut tower (6) (arrow)	Note correct installation position.
6	Remove front section of fender liner in front fender	Front section of fender liner in right front fender Wheel does not need to be removed.	AR88.10-P-1310RT
7	Disconnect washer fluid hose (4) from windshield washer fluid pump (M5/1) and remove	Collect escaping washer fluid with a suitable reservoir.
		Set of stop plugs	Figure
8	Install in the reverse order
9	Fill washer fluid reservoir
	Windshield washer system - inspect fluid level, adjust to correct level		AP82.35-P-8210RT
10	Carry out function check of the windshield wipers and the windshield washer system
	Windshield wipers, windshield washer system and headlamp cleaning system - function check		AP82.30-P-8252RT
11	Check setting of windshield washer nozzles (5), adjust if necessary.
	Check setting of windshield washer system spray nozzles		AP82.35-P-8252-01RT
