Remove/install air intake duct under engine hood - AR83.25-P-1407RT

MODELS 251

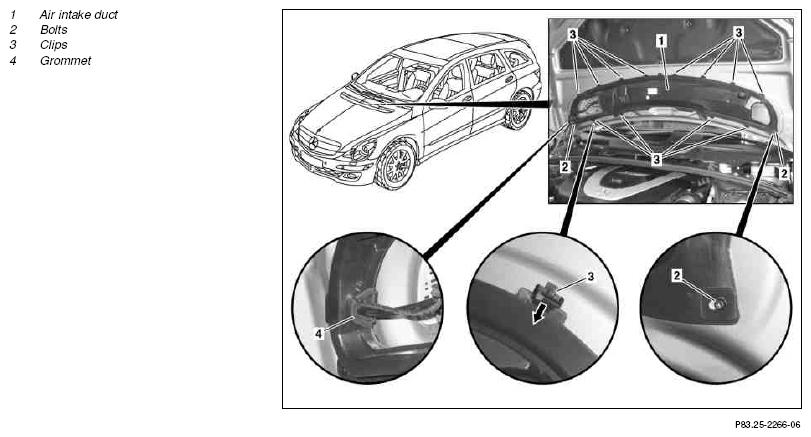

Fig 1: Identifying Engine Hood Air Intake Duct Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove
1	Open engine hood and move to upright position		AR88.40-P-1000RT
2	Unscrew bolts (2)
3	Unclip clips (3)	Long wedge	Fig 2
4	Remove air intake duct (1)	The grommet (4) may fall out during removal of the air intake duct (1).
	Install
5.1	Insert grommet (4)	If grommet (4) fell out during removal.
6	Clip in air intake duct (1)
7	Screw in screws (2)
8	Close engine hood		AR88.40-P-1000RT

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
