Remove/install windshield washer nozzle - AR82.35-P-6970RT

MODEL 251

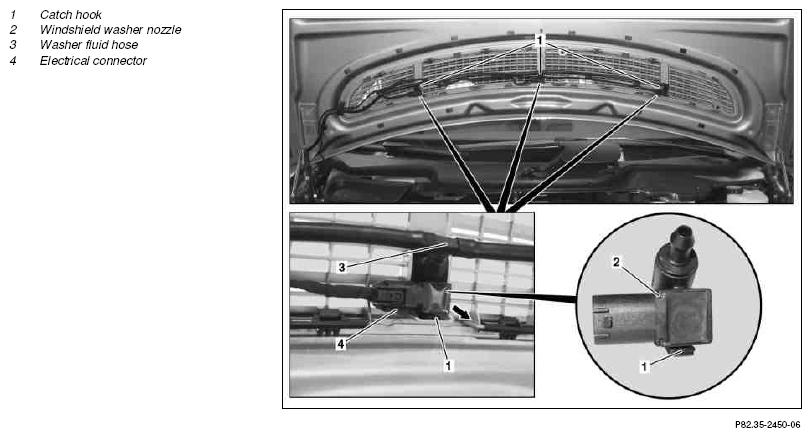

Fig 1: Identifying Windshield Washer Nozzle Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Open engine hood and move to upright position		AR88.40-P-1000RT
2	Remove air intake duct under the hood		AR83.25-P-1407RT
3	Detach washer fluid hose (3) from windshield washer nozzle (2)	Risk of breakage.
4	Unclip windshield washer nozzle (2) from catch hook (1) of air inlet grate (arrow)
5	Unplug electrical connector (4) and disconnect windshield washer nozzle (2)
6	Install in the reverse order
7	Fill washer fluid reservoir
	Windshield washer system - inspect fluid level, adjust to correct level		AP82.35-P-8210RT
8	Carry out function check of the windshield wipers and the windshield washer system
	Windshield wipers, windshield washer system and headlamp cleaning system - function check		AP82.30-P-8252RT
9	Check adjustment of windshield washer nozzle (2), adjust if necessary.
	Check setting of windshield washer system spray nozzles		AP82.35-P-8252-01RT
