Remove/install rear axle level sensor - AR82.10-P-0005RT
MODEL 251
Shown on vehicle with panoramic glass roof with top sliding roof, code 413
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Switch off ignition and remove the transmitter key from the EIS [EZS] control unit | Press Keyless Go start/stop button repeatedly until ignition is switched off. Remove transmitter key from vehicle and store it in a location beyond its transmission range (at least 2 m). |
|
| 2 | Raise vehicle. | AR00.60-P-1000RT | |

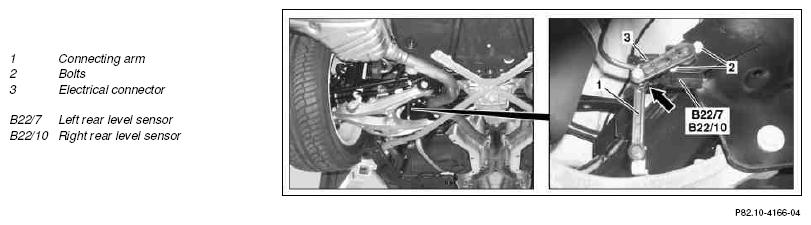

| 3 | Separate electrical plug connection (3) | ||
| 4 | Disconnect connecting arm (1) from left rear level sensor (B22/7) or right rear level sensor (B22/10) (arrow) | ||
| 5 | Unscrew bolt (2) | *BA82.10-P-1001-02D | |
| 6 | Remove left rear level sensor (B22/7) or right rear level sensor (B22/10) | ||
| 7 | Install in the reverse order | ||
| 8.1 | Connect STAR DIAGNOSIS and calibrate vehicle level | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| STAR DIAGNOSIS system | *WH58.30-Z-1048-13A |
REAR AXLE LEVEL SENSOR
| Number | Designation | Model 251 | |
|---|---|---|---|
| BA82.10-P-1001-02D | Bolt, level sensor to retaining plate | Nm | 5 |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation | |
|---|---|---|
| WH58.30-Z-1048-13A | STAR DIAGNOSIS system, Compact Passenger Car | 6511 1801 00 |
