Remove/install media interface control unit - AR82.60-P-1030GZ

MODEL 164, 251 with CODE (518) Media interface

Shown on model 164.1

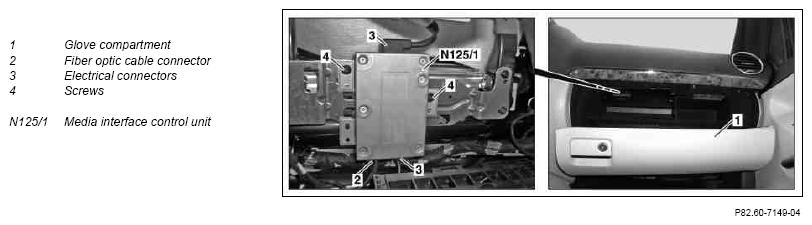

Fig 1: Identifying Media Interface Control Unit Remove/Install Components - Shown On Model 164.1

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Buffer basic data of media interface control unit (N125/1) in STAR DIAGNOSIS	When replacing the media interface control unit (N125/1). Transfer basic data from STAR DIAGNOSIS to the new media interface control unit (N125/1).
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
2	Remove glove compartment (1)	Model 164.	AR68.10-P-1400GZ
		Model 251.	AR68.10-P-1400RT
3	Disconnect fiber optic cable connector (2) and cover equipment connector at media interface control unit (N125/1)
	Notes on avoiding damage to fiber optic cables during repair work	With Media Oriented System Transport (MOST)	AH82.60-P-0001-05AK
4	Separate electrical connectors (3)
5	Remove screws/bolts (4) and remove media interface control unit (N125/1)
6	Install in the reverse order
