Remove/install glove compartment - AR68.10-P-1400RT

MODEL 251

Shown on vehicle with CD changer, code 819

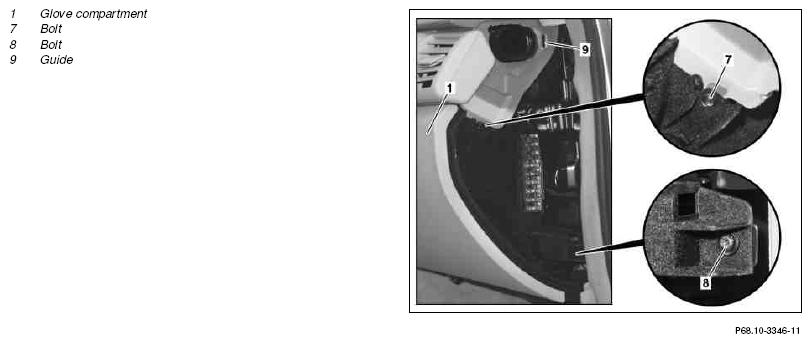

Fig 1: Identifying Glove Compartment Remove/Install Component (1 Of 2)

Courtesy of MERCEDES-BENZ USA

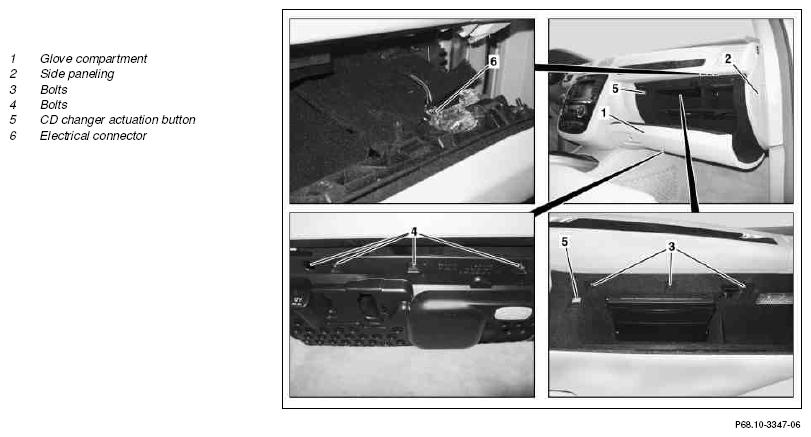

Fig 2: Identifying Glove Compartment Remove/Install Component (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Open glove compartment (1)
2.1	Move CD changer to lock position	Only on vehicles with CD changer, code 819.
3	Remove edge guard in area of side paneling (2)	Ensure that edge guard is seated correctly.
4	Unclip side paneling (2)	Ensure that side paneling (2) is seated correctly in guide (9)
		Long wedge	Figure
5	Undo screw (7, 8)
6	Unscrew screws (3, 4)
7	Remove glove compartment (6) downward and disconnect electrical connector for glove compartment illumination
8	Install in the reverse order
9.1	Check CD changer actuation button (5) for proper function	Only on vehicles with CD changer, code 819.

Fig 3: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
