Remove/install front door speakers in mirror triangle - AR82.62-P-7850RT

MODELS 251

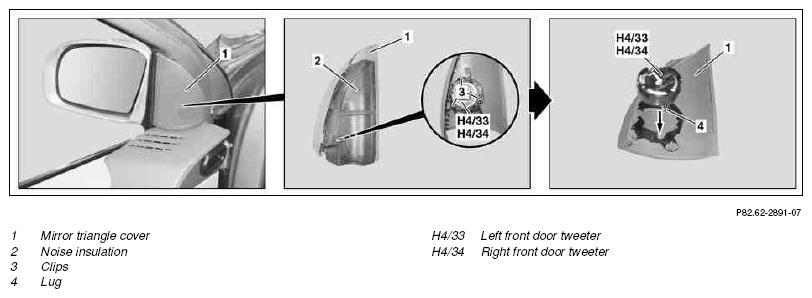

Fig 1: Identifying Front Door Speakers In Mirror Triangle Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Remove mirror triangle cover (1)		AR72.10-P-3001RT
		Mounting wedge	Figure
2	Remove noise damping (2)
3	Unclip left front door tweeter (H4/33) or right front door tweeter (H4/34) from the clips (3)	The installation position of the tweeter is determined by the notch (4) (arrow).
4	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
