Remove/install mirror triangle cover on front door - AR72.10-P-3001RT

MODEL 251

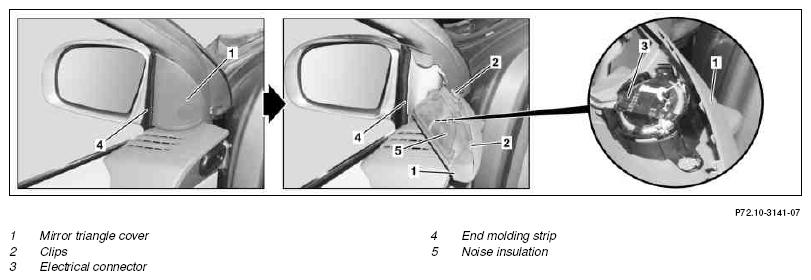

Fig 1: Identifying Mirror Triangle Cover On Front Door Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Open front door
2	Completely move down window
3	Switch off ignition and remove transmitter key from EIS [EZS] control unit	On vehicles with Keyless Go, code 889: Press keyless go start/stop button repeatedly until ignition is switched off Remove transmitter key from vehicle and store it in a location beyond its transmission range (at least 2 m).
4	Switch off radio	See Operator's Manual
5	Unclip mirror triangle cover (1)	Ensure that clips (2) and end strip (4) are seated correctly
		Mounting wedge	Figure
6	Disconnect electrical connector (3) below noise insulation (5)
7	Remove mirror triangle cover (1)
8	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
