Remove/install control unit for TELE AID emergency call system - AR82.95-P-0005RT
MODEL 251 with CODE (359) TELE AID emergency call system

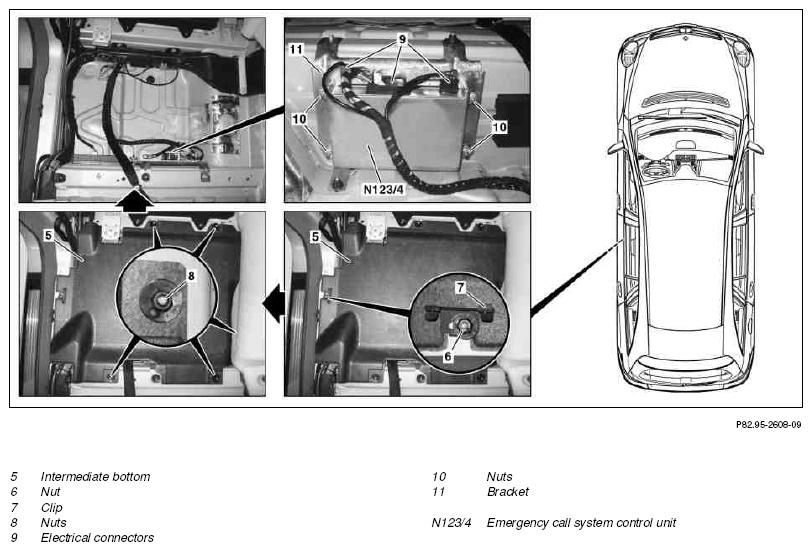

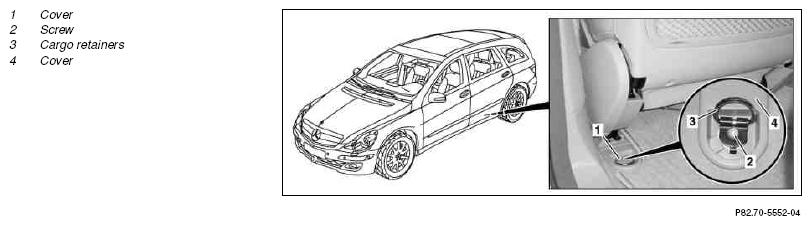

Fig 2: Identifying Tele Aid Emergency Call System Control Unit Remove/Install Components - Illustration On Model 251.1
Front seat removed on model 251.1 for easier illustration
MODIFICATION NOTES
| 17.11.08 | Remove B-pillar trim at bottom , added | Step 2 | AR68.30-P-4700RT |
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Remove rear seat on driver side | AR91.12-P-1000RT | |
| 2 | Remove B-pillar trim at bottom | AR68.30-P-4700RT | |
| 3 | Take off cover (1) | ||
| 4 | Remove bolt (2) | *BA68.50-P-1001-03G | |
| 5 | Remove cargo retainers (3) and cover (4) | ||
| 6 | Raise floor cover far enough to have access to nut (6) and nuts (8) on the intermediate bottom (5) | ||
| 7 | Unscrew nut (6) and nuts (8) and remove intermediate bottom (5) | ||
| 8 | Separate electrical connectors (9) | ||
| 9 | Unscrew nuts (10) | ||
| 10 | Remove emergency call system control unit (N123/4) from bracket (11) | ||
| 11 | Install in the reverse order |
CARGO RETAINERS
| Number | Designation | Model 251 | |
|---|---|---|---|
| BA68.50-P-1001-03G | Bolt, cargo retainers to body | Nm | 24 |
