Retrofit iPod interface with video function - AZ82.60-P-0017RT
MODEL 251.0##/1## (except 251.077/177) 1# with CODE (809) Model year 2009 with CODE (527) COMAND APS with single DVD drive (with navigation) with CODE (512) COMAND APS with DVD changer with CODE (528) COMAND with DVD changer except CODE (518) Media interface except CODE (863) Digital/analog TV tuner except CODE (866) Preinstallation for rear entertainment system except CODE (864) Rear entertainment system
| Removing | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Switch off ignition and withdraw transmitter key or KEYLESS-GO start/stop button from the EIS [EZS] control unit | ||
| 2 | Remove the COMAND operating, display and controller unit (A40/3) | AR82.60-P-7502RT | |
| 3 | Remove cover below dashboard on right | AR68.10-P-1520RT | |
| 4 | Remove glove compartment | AR68.10-P-1400RT | |
| Install | |||

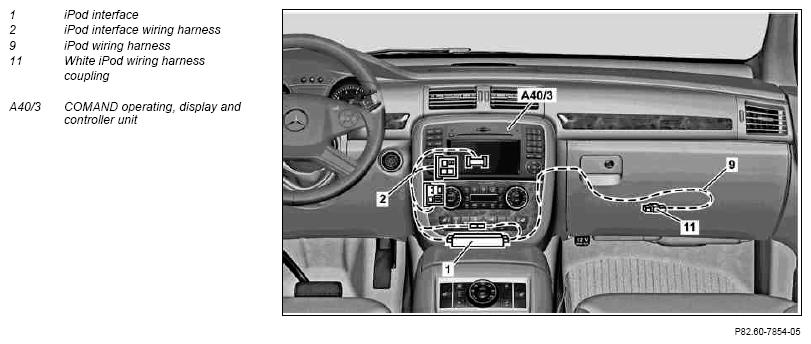

| 5 | Retrofit iPod interface (1) | AZ82.60-P-0001-03RTA | |
| 6 | Retrofit iPod wiring harness (9) and iPod interface wiring harness (2) | Cordless drill/driver | AZ82.60-P-0001-01RTA |
| Notes on avoiding damage to fiber optic cables during repair work | With Media Oriented System Transport (MOST) | AH82.60-P-0001-05AK | |
| 7 | Install remaining parts onto vehicle | ||
| 8 | Connect STAR DIAGNOSIS | ||
| 9 | Activate video AUX jack using Star Diagnosis | ||
| 10 | Close Star Diagnosis | ||
| 11 | Perform function check of iPod interface (1) |
PARTS ORDERING NOTES
| Part no. | Designation | Quantity |
|---|---|---|
| KG98 (see EPC) | Electrical system and function | 1 |
