Retrofit iPod interface - AZ82.60-P-0014RT

Model 251 except code 498 (Japanese version) except code 830 (Vehicles for China, additional parts)

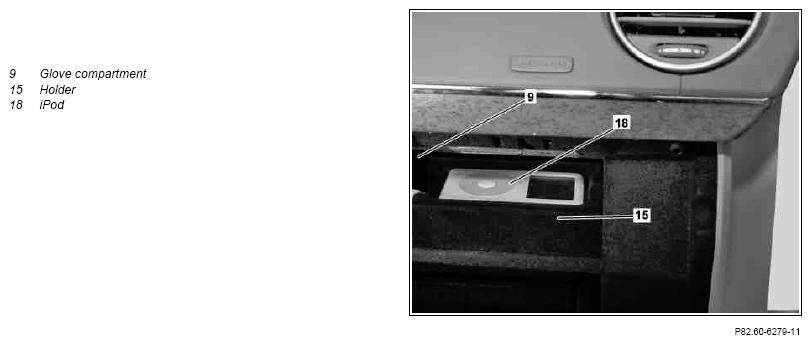

Fig 1: Identifying Retrofit iPod Interface Components

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Remove radio
			AR82.60-P-7502RT
2	Remove cover on right under the dashboard
			AR68.10-P-1520RT
3	Remove glove compartment
			AR68.10-P-1400RT
	Install
4	Retrofit iPod interface wiring harness		AZ82.60-P-0001-01RT
	Notes on avoiding damage to optical fibers during repair work		AH82.60-P-0001-05AK
5	Retrofit iPod wiring harness		AZ82.60-P-0001-02RT
6	Retrofit iPod interface		AZ82.60-P-0001-03RT
7	Bond cradle (15) in glove compartment (9) with universal adhesive as shown	Adhesive/Dekalin 3649	*BR00.45-Z-1003-02A
8	Connect iPod (18) to iPod connector in glove compartment (9)
9	Install remaining parts
10	Enter retrofitted equipment into vehicle documentation system (VeDoc)	Attach note "iPod interface retrofitted as per AZ82.60-P-0014RT " under field organization texts to design group 82.
11	Connect diagnostic system and select vehicle via the vehicle identification number (VIN)
			AD00.00-P-2000-04A
12	Perform variant coding with XENTRY using the software calibration number (SCN)	Model 251 except code 386 (Comfort telephony) except code 388 (Telephone "Handy", UPCI system) except code 498 (Japanese version) except code 830 (Vehicles for China, additional parts)
			AZ54.65-P-0001-08Q
13	Disconnect diagnostic system
			AD00.00-P-2000-04A
	Check
14	Carry out function check	Check iPod functions as per iPod operating instructions in vehicle.
