Remove/install trim strip on instrument panel - AR68.10-P-1180GY

MODEL 164.8

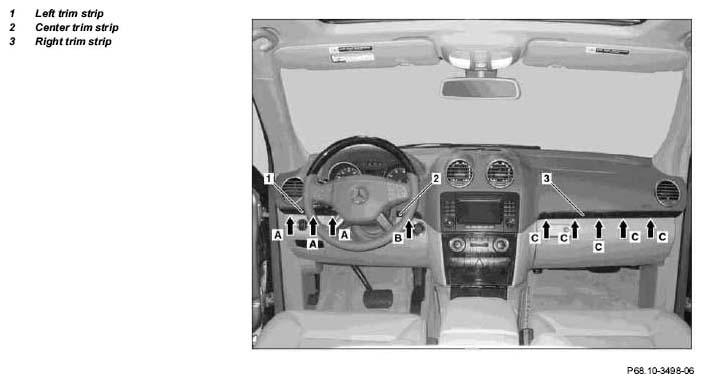

Fig 1: Identifying Trim Strip Remove/Install Components On Instrument Panel

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Left trim strip
1	Remove side air outlet		AR68.10-P-1100GZ
2	Unscrew nuts from left trim strip (1) behind instrument panel	Three nuts.
3	Pry grub screws on left trim strip (1) out of clip-type fasteners on instrument panel (arrows A) with mounting wedge	Mounting wedge	Fig 2
	Center trim strip
4	Remove center air outlet	Only left air outlet	AR68.10-P-1150GZ
5	Unscrew nut on center trim strip (2) behind instrument panel.	Access through air outlet in left center air outlet.
6	Pry grub screws on center trim strip (2) out of clip-type fasteners on instrument panel (arrows B) with mounting wedge	Mounting wedge	Fig 2
	Right trim strip
7	Remove side air outlet		AR68.10-P-1100GZ
8	Remove glove compartment		AR68.10-P-1400GZ
9.1	Remove CD changer	Only on vehicles with CD changer, code 819.	AR82.64-P-7508GZ
10	Unscrew nuts from right trim strip (3) behind instrument panel	Five nuts.
11	Pry grub screws on right trim strip (3) out of clip-type fasteners on instrument panel (arrows C) with mounting wedge	Mounting wedge	Fig 2
12	Install in the reverse order
