Remove/install side air outlet - AR68.10-P-1100GZ

MODEL 164

Shown on model 164.1 on left side air outlet

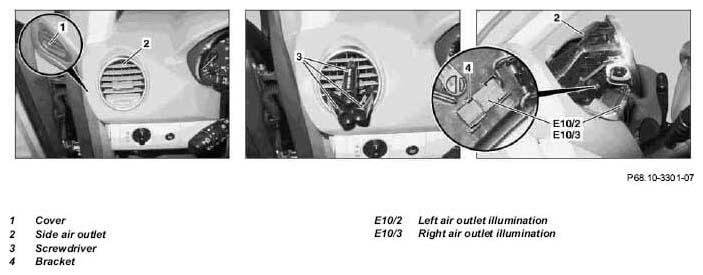

Fig 1: Identifying Side Air Outlet Remove/Install Components - Shown On Model 164.1 On Left Side Air Outlet

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Unclip cover (1)	From front. Installation:  Ensure that guides are seated correctly.
		Long wedge	Fig 2
2	Unclip side air outlet (2) with screwdriver (3).	Installation:  Ensure that side air outlet (2) arrests correctly.
3	Remove side air outlet (2) from instrument panel until left air outlet illumination (E10/2) or right air outlet illumination (E10/3) is accessible.
4	Unclip left air outlet illumination (E10/2) or right air outlet illumination (E10/3) on side air outlet (2) from bracket (4).	Installation:  Ensure that left air outlet illumination (E10/2) or right air outlet illumination (E10/3) is positioned correctly.
5	Disconnect electrical connector from left air outlet illumination (E10/2) or right air outlet illumination (E10/3)
6	Remove side air outlet (2)
7	Install in the reverse order

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
