Remove/install center console - AR68.20-P-2000GZ

MODEL 164

Fig 1: Identifying Center Console

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on vehicle with USA version, code 494

Fig 2: Identifying Ashtray Housing And Beverage Holder - Shown On Vehicle With USA Version, Code 494

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

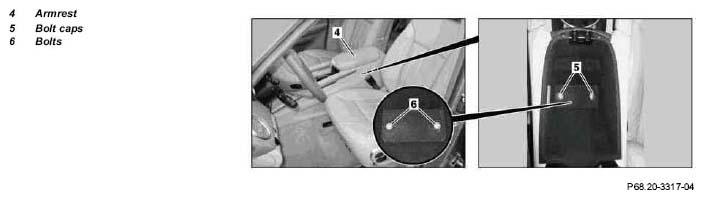

Fig 3: Identifying Armrest, Bolt Caps And Bolts

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 4: Identifying Center Console Remove/Install Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Remove ashtray housing (2) from front center console		AR68.20-P-2400GZ
2	Remove front beverage holder (3).		AR68.20-P-2240GZ
3	Completely move front seats toward rear
4	Switch off ignition and remove transmitter key from EIS [EZS] control unit	On vehicles with Keyless Go, code 889: Press Keyless Go start/stop button repeatedly until ignition is switched off. Remove transmitter key from vehicle and store it in a location beyond its transmission range (at least 2 m).
5	Unlock armrest cover and set upright
6	Unclip bolt caps (5).	Long wedge	Figure
7	Remove bolts (6)
8	Remove bolts (7)
9	Unclip clip (8)	Unclip upward.
10	Disconnect electrical connector (9, 10, 11, 12)
11	Pull center console (1) toward rear, lift and remove	Remove through front door.
12	Install in the reverse order
13	Perform a function test

Fig 5: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
