Retrofit vehicle entertainment - AZ82.60-P-0013GZ

MODEL 164

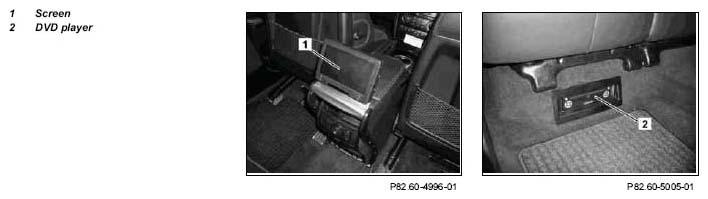

Fig 1: Identifying Screen And DVD Player
G05260505Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
MODIFICATION NOTES

26.7.06 "Disconnect/connect battery ground line" removed Step 1
REMOVING Removal
1 Remove right front and right rear door sill molding
REFER TO TESTING & REPAIR Remove/install door sill molding   AR68.30-P-4100GZ
2 Remove paneling from right B-pillar
REFER TO TESTING & REPAIR Remove/install paneling on B-pillar   AR68.30-P-4700GZ
3 Fold back rear seat cushion on left
4 Remove right rear seat cushion Model 164.1
REFER TO TESTING & REPAIR Remove/install rear seat cushion 40% rear seat AR91.12-P-1020GZ
5 Remove 40% rear seat Model 164.8
REFER TO TESTING & REPAIR Remove/install rear seat   AR91.12-P-1000GY
6 Remove cover from floor below rear bench seat Model 164.1
7 Lift floor covering underneath rear bench seat and remove styrofoam cover Model 164.8
8 Remove rear center console
REFER TO TESTING & REPAIR Remove/install rear center console   AR68.20-P-2020GZ
9 Remove bolts of right 3rd seat row rear seat cushion from floor panel Model 164.8
10 Fold up rear seat cushion and secure Model 164.8
11 Remove cover above rear fuse and relay box
12 Remove rear fuse and relay box IMPORTANT Only when "Accessory power supply wiring harness" has not been installed.
REFER TO TESTING & REPAIR Remove fuse and relay box in rear IMPORTANT Do not disconnect electrical connectors. AR54.15-P-1261GZ
13 Remove emergency wheel IMPORTANT Vehicles with compact spare tire as emergency wheel, code 690.
14 Remove bracket for vehicle tool kit or Tirefit from spare tire well
INSTALLING Install
15 Retrofit screen (1)   AZ82.70-P-0001-12GZ
16 Install DVD player (2)   AZ82.60-P-0005-01GZ
17 Retrofit wiring harness. IMPORTANT Only when "Accessory power supply wiring harness" has not been installed. AZ82.70-P-0001-04GZA
18 Retrofit wiring harness.   AZ82.70-P-0001-04GZB
19 Carry out function test
20 Install in the reverse order IMPORTANT Steps 12 up to 1.
PARTS ORDERING NOTES

Part no. Designation Quantity
B6 782 6631 RSES parts kit (black), regional code 1 As required
B6 782 6633 RSES parts kit (alpaca gray), regional code 1 As required
B6 782 6635 RSES parts kit (beige), regional code 1 As required
B6 782 6632 RSES parts kit (black), regional code 2 As required
B6 782 6634 RSES parts kit (alpaca gray), regional code 2 As required
B6 782 6636 RSES parts kit (beige), regional code 2 As required
B6 782 6654 RSES parts kit (black), regional code 3 As required
B6 782 6655 RSES parts kit (alpaca gray), regional code 3 As required
B6 782 6656 RSES parts kit (beige), regional code 3 As required
B6 782 6657 RSES parts kit (black), regional code 4 As required
B6 782 6658 RSES parts kit (alpaca gray), regional code 4 As required
B6 782 6659 RSES parts kit (beige), regional code 4 As required
B6 782 6660 RSES parts kit (black), regional code 5 As required
B6 782 6661 RSES parts kit (alpaca gray), regional code 5 As required
B6 782 6662 RSES parts kit (beige), regional code 5 As required
B6 782 6637 Bracket parts kit (black) As required
B6 782 6638 Bracket parts kit (alpaca gray) As required
B6 782 6639 Bracket parts kit (beige) As required
B6 788 5154 Accessory wiring harness 1
