Retrofit screen - AZ82.70-P-0001-12GZ

Model 164

1. Remove left blank holder (3) and right blank holder (4) from retaining bracket (5) and place to one side.

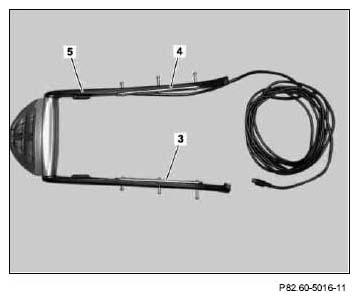

   Fig 1: Identifying Left Blank Holder, Right Blank Holder And Retaining Bracket

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

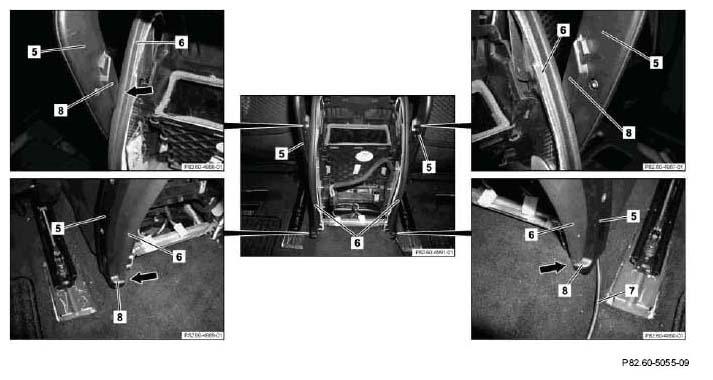

   Fig 2: Identifying Retaining Bracket, Center Console And Wiring Harness

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
2. Have second mechanic hold retaining bracket (5) on center console (6) (see arrows) and transfer holes to center console (6).

   Ensure that the locating tools (8) on the retaining bracket (5) are in contact with the center console (6) (see arrows). The bottom edge of the retaining bracket (5) is simultaneously the bottom edge of the center console (6).

   Do not pinch or damage wiring harness (7) with retaining bracket (5).

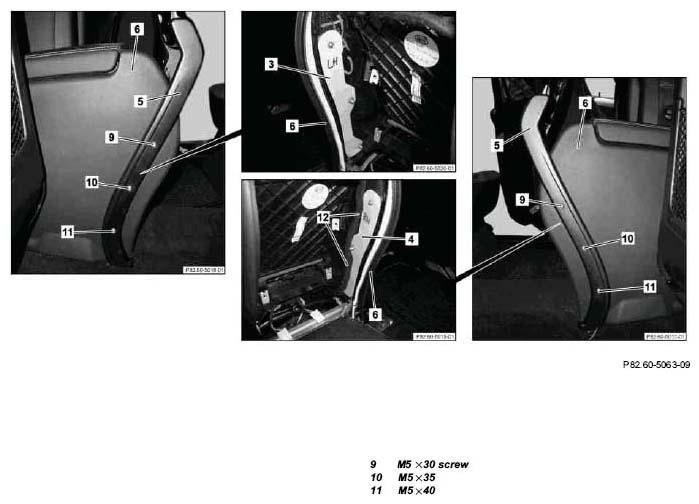

   Fig 3: Identifying Retaining Bracket, Left/Right Blank Holder, Center Console And Vehicle's Wiring Harness

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
3. Drill holes in center console with dia. 8 mm bit.

   Do not damage vehicle's own wiring harness (12) when drilling.

   Use retaining bracket (5) as drilling template.

4. Fasten retaining bracket (5) with left blank holder (3) and right blank holder (4) to center console (6) with screws (9, 10, 11).

   Do not yet tighten screws (9, 10, 11).

   The left blank holder (3) is marked with "LH" and the right blank holder (4) with "RH". The blank holders must be installed so that the designations are legible. The location of the different length screws must  be observed.

5. Unscrew rear cover (12) from front cover (13).
   Fig 4: Identifying Front Cover And Rear Cover

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
6. Move screen (1) against stop in present guides for rear cover (12) and fasten with screw (15).

   Ensure that one washer (14) is present on the screw (15) (see magnified drawing).

   Fig 5: Identifying Screen, Washer And Rear Cover

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
7. Install ashtray and complete cover on rear center console.
8. Connect connector (16) and refasten rear cover (12) to front cover (13).

   Ensure that the rear cover (12) is properly positioned on the front cover (13).

9. Tighten all retaining bracket screws.
   Fig 6: Identifying Connector And Rear Cover

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
