Remove/install E-net compensator - AR82.70-P-0010GZ

MODEL 164, 251 with CODE (386) Preinstallation for telephone "Cell phone", UPCI [UHI] system

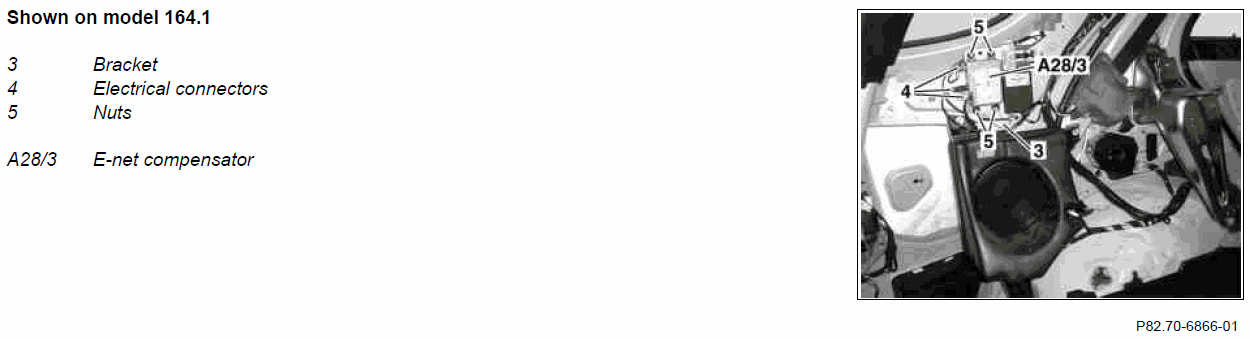

Fig 1: Cell Phone, UPCI [UHI] System (Shown On Model 164.1)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

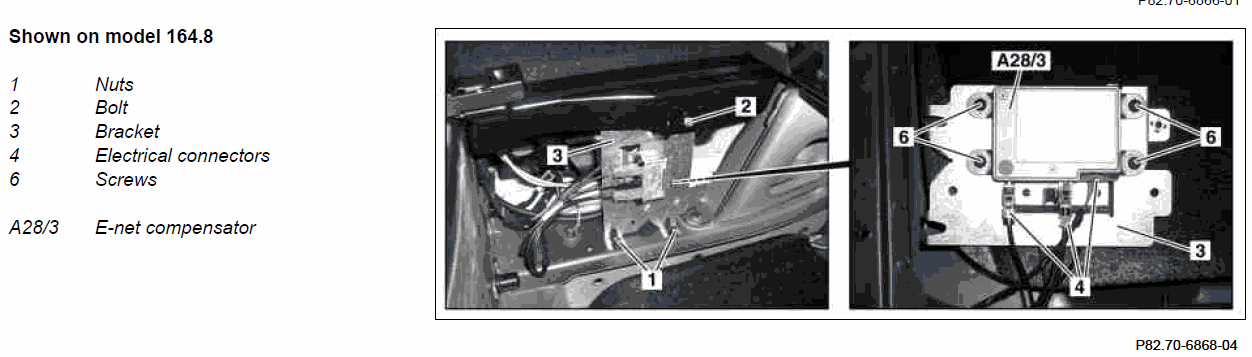

Fig 2: Cell Phone, UPCI [UHI] System (Shown On Model 164.8)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Remove paneling from left C-pillar. Model 164.1. Do not remove screw/bolt at belt end fitting. See REMOVE/INSTALL PANELING ON C-PILLAR - AR68.30-P-4490GZ .

Remove left paneling for spare tire well. (Model 164.8.) See REMOVE/INSTALL SPARE WHEEL WELL PANELING - AR68.30-P-4620GZ .

Unscrew nuts (1) and bolt (2). (Model 164.8.)

Tilt back bracket (3). (Model 164.8.)

Separate electrical connectors (4)

Unscrew nuts (5) or bolts (6)

Remove E-net compensator (A28/3) from bracket (3)

Install in the reverse order
