Removing and installing keyless go antenna - AR82.62-P-8000GZ

MODEL 164 with CODE (889) Keyless Go.

Shown on model 164.1

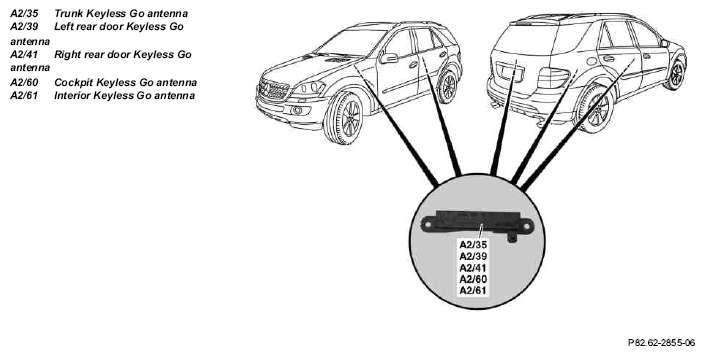

Fig 1: Identifying Keyless Go Antenna Components Location (1 Of 5)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on model 164.1

Fig 2: Identifying Keyless Go Antenna Components Location (2 Of 5)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on model 164.1

Fig 3: Identifying Keyless Go Antenna Components Location (3 Of 5)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on model 164.1

Fig 4: Identifying Keyless Go Antenna Components Location (4 Of 5)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on model 164.1

Fig 5: Identifying Keyless Go Antenna Components Location (5 Of 5)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Switch off ignition and remove transmitter key from EIS control unit	Press Keyless Go start and stop button repeatedly until the ignition is switched off. Remove keyless go transmitter card or transmitter key from vehicle and store outside of transmission range (min. 2 m)

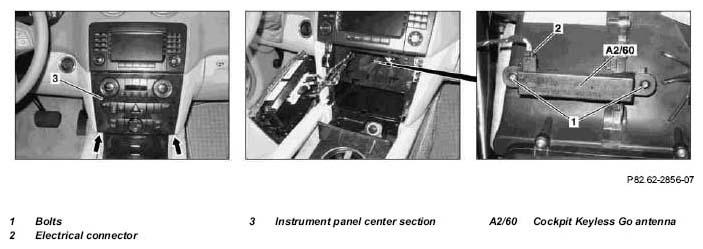

2.1	Unlatch the instrument panel center part (3) at the bottom edge (arrows) and pull forward out of the instrument panel	Only for removal of the cockpit Keyless Go antenna (A2/60). Protect trim parts of the instrument panel and center console from scratches.

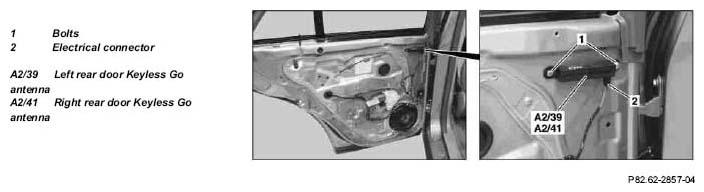

2.2	Remove door lining from rear door	Only for removal of left rear door Keyless Go antenna (A2/39) or right rear door Keyless Go antenna (A2/41).	AR72.12-P-1010GZ

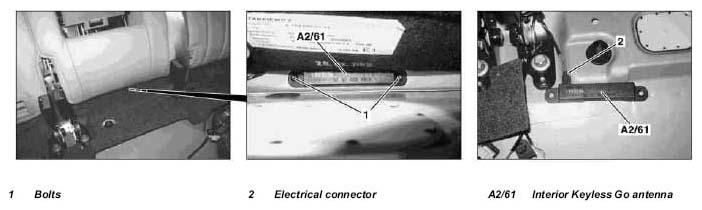

2.3	Remove covering under the seats	Only for removal of interior Keyless Go antenna (A2/61).

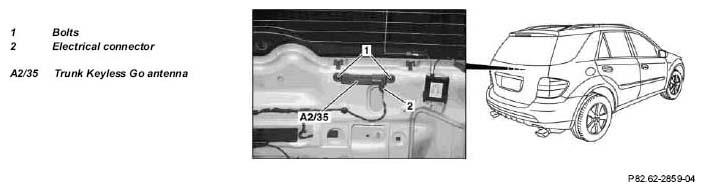

2.4	Remove liner on tailgate	Only for removal of luggage compartment Keyless Go antenna (A2/35).	AR72.20-P-3520GZ
3	Remove bolts (1)
4	Disconnect electrical connector (2)
5	Install in the reverse order
6	Read out fault memory	Stored faults which may be caused by disconnecting cables or by simulation during test operations, must be erased in the fault memory after completing the work.
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
		STAR DIAGNOSIS diagnosis system	*WH58.30-Z-1048-13A
