Remove/install rear door lining - AR72.12-P-1010GZ
MODEL 164
Shown on 164.1
| Remove/install | |||
|---|---|---|---|

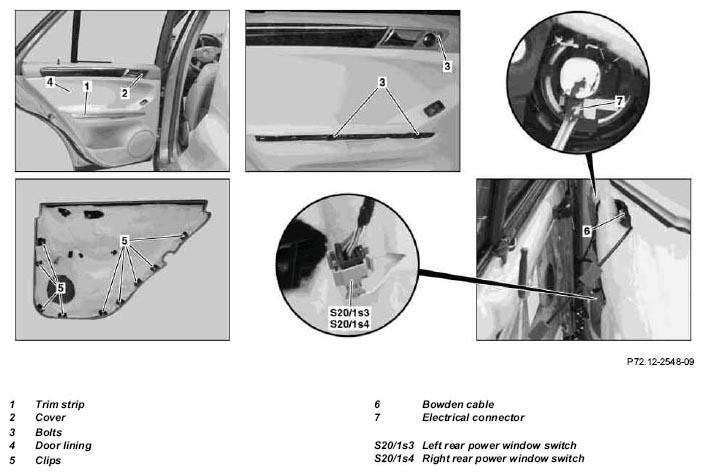

| 1 | Unclip trim strip (1) | Long wedge | Figure |
| 2 | Unclip cover (2) | Long wedge | Figure |
| 3 | Remove bolts (3) | ||
| 4 | Unclip door lining (4) from rear door | Position mounting wedge immediately next to clips (5) and carefully pry off door lining. Do not damage door lining and paint. Installation: Replace damaged clips. |
|
| Mounting wedge | Figure | ||
| 5 | Remove Bowden cable (6) from door lining. | Do not kink Bowden cable. | |
| 6 | Disconnect electrical connector (7) | ||
| 7 | Disconnect electrical connector from left rear power window switch (S20/1s3) or right rear power window switch (S20/1s4) | Do not damage ribbon cable! | |
| 8 | Remove door lining. | ||
| 9 | Install in the reverse order |
