Fuse and relay box, as-built Configuration - GF54.15-P-0800CB
MODEL 463.202/222/236/237,
463.247/248/249/254/270/271 ## as of 156043,
463.303/340/341

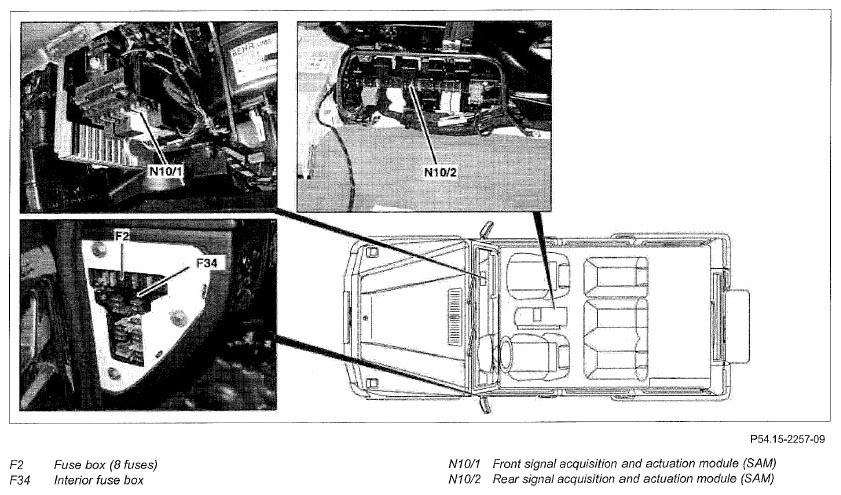

Fig 1: Identifying Fuse Box (8 Fuses), Interior Fuse Box And Front/Rear Signal Acquisition And Actuation Module (SAM)
| Fuse and relay box fuse assignment | Model 463.244/245/247/248/249/250/254/270/271/309/322/323/332/333/333 up to end no. 156042 | GF54.15-P-1255-20CB | |
| Fuse and relay box fuse assignment | Model 463.202/222/236/237 up to 31.8.09, 463.247/248/249/254/270/271 ## as of 156043 up to 31.8.09, 463.303/340/341 up to 31.8.09 | GF54.15-P-1255-20CC | |
| Fuse and relay box fuse assignment | Model 463.202/222/236/237/270/271/303/340/341 as of model year 2010/YoM 09 | GF54.15-P-1255-20CD | |
| Fuse and relay box relay assignment | Model 463.244/245/247/248/249/250/254/270/271/309/322/323/332/333/333 up to end no. 156042 | GF54.15-P-1255-21CB | |
| Fuse and relay box relay assignment | Model 463.202/222/236/237 as of 31.8.09, 463.247/248/249/254/270/271 ## as of 156043 up to 31.8.09, 463.303/340/341 up to 31.8.09 | GF54.15-P-1255-21CC | |
| Fuse and relay box relay assignment | Model 463.202/222/236/237/270/271/303/340/341 as of model year 2010/YoM 09 | GF54.15-P-1255-21CD |
