Stamp in vehicle identification number - AR60.00-P-0800T

Model 211.0/2

Shown on Model 211.0

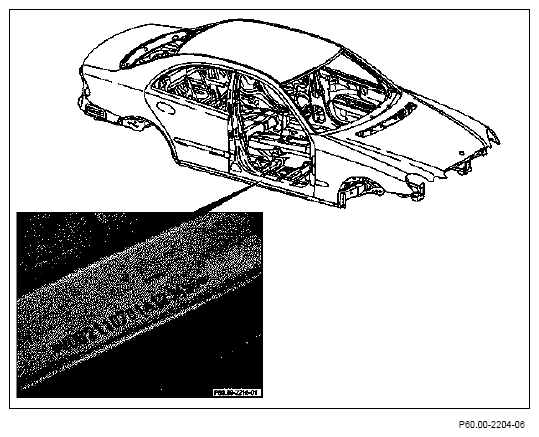

Fig 1: Locating Vehicle Identification Number

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Product liability, trademark and traffic laws	All models	AH60.00-P-0800-01Z
	Vehicle identification number	All EC vehicles	AH60.00-P-0800-02A
	Vehicle identification number	All vehicles with US version	AH60.00-P-0800-02B
1	Mounting number punch guide	Observe correct installation position	AR60.00-P-0800-01T
		Number punch guide	Figure
2	Stamping in vehicle identification number		AR60.00-P-0800-02T
		Number punches	Figure
		Steel letter punches	Figure
		Number punch guide	Figure
3	Crossing out vehicle identification number and repunching in spare field		AR60.00-P-0800-05T
		Number punches	Figure
		Steel letter punches	Figure
		Number punch guide	Figure

Fig 2: Identifying Set Of Number Punches (140 589 26 63 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: Identifying Set Of Letter Punches (140 589 26 63 05)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 4: Identifying Number Punch Guide (211 589 02 63 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
