Bleed brake system - AR42.10-P-0010T

MODEL 211, 219 with Adaptive Brake (ABR)

MODEL 230 with CODE (P99) Special model "AMG Black Series"

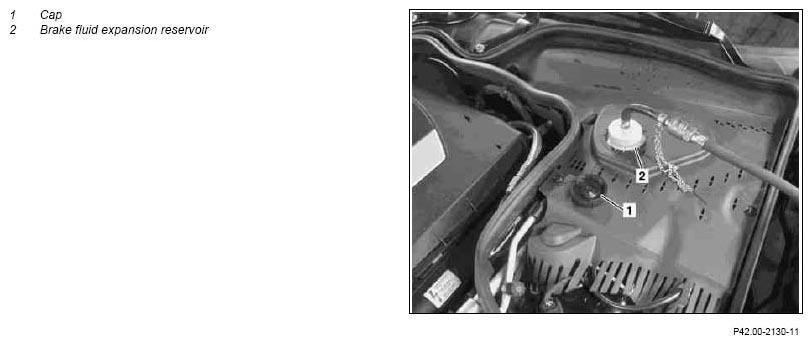

Fig 1: Identifying Cap And Brake Fluid Expansion Reservoir

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Risk of poisoning  caused by swallowing brake fluid. Risk of injury  caused by brake fluid coming into contact with skin and eyes.	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
	Notes on repairs to brake system		AH42.00-P-0003-01A
	Brake fluid notes		AH42.50-P-0001-01A
	Clean
1	Remove cover on brake fluid expansion reservoir (2)	Only for vehicles with cover on brake fluid expansion reservoir (2).
2	Clean area around cap (1)
3	Unscrew cap (1).		*BA42.50-P-1001-01D
4	Add new brake fluid up to the "MAX." mark in the expansion reservoir (2)
5	Connect the brake fluid change unit to the expansion reservoir (2) and switch on	Pay attention to manufacturer's operating instructions. Brake fluid changer with reservoir (10-20 l) gotis://B_42/43.2_01.1
6	Remove the front wheels	Vehicles with 6-piston or 8-piston brake calipers
	Remove/install wheels	Models 211, 230	AP40.10-P-4050Z
		Model 219	AP40.10-P-4050TX
7	Carrying out bleeding operation	Model 211, 219	AR42.10-P-0010-02SX
			*BA42.10-P-1002-10H
			*BA42.10-P-1002-10B
			*BA42.10-P-1001-12H
			*BA42.10-P-1001-12B
		Model 230	AR42.10-P-0010-02RBS
			*BA42.10-P-1002-10B
			*BA42.10-P-1001-12B
8	Install in the reverse order
	Checking
9	Check brake system for leaks	Model 211, 219 Model 230	AR42.10-P-0100-01V
10	Correct fluid level in expansion reservoir (2)
	Brake system - inspect fluid level	Models 211, 230	AP42.10-P-4210Z
		Model 219	AP42.10-P-4210TX
