SBC pedal value sensor, location/task/design/function - GF42.46-P-4210SL
MODEL 211 as of 31.5.06 except CODE (494) USA version except CODE (498) Japan version
MODEL 211 as of 30.6.06 with CODE (494) USA version with CODE (498) Japan version
MODEL 230 up to Model Year 8
MODEL 240
View presented

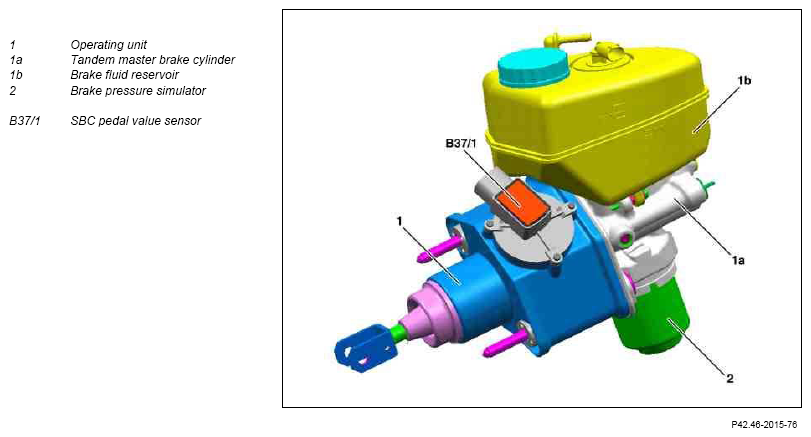

| SBC pedal value sensor, location | Models 211, 230. | GF42.46-P-4210-01SL |
| SBC pedal value sensor, task | To convey the position of the brake pedal to the SBC control unit (A7/3n1). | |
| SBC pedal value sensor, design | Sensor with mechanism to convert the vertical movement of the brake pedal into a rotary movement for the sensor. | |
| SBC pedal value sensor, function | Redundant Hall sensor. |
