SBC pedal value sensor, location - GF42.46-P-4210-01SL

Models 211, 230

Location illustrated on model 230

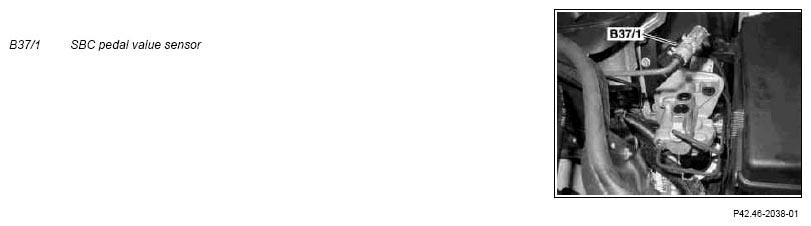

Fig 1: Locating SBC Pedal Value Sensor

G07249494

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
