Retrofitting D-network cell phone - AZ82.70-P-0001TTA

MODEL 211.0 except CODE (273) Provision for D-network portable CTEL telephone except CODE (924) Bivalent natural gas drive for Mercedes-Benz hands-free system FSE11 with CAN interface

Shown in version with radio

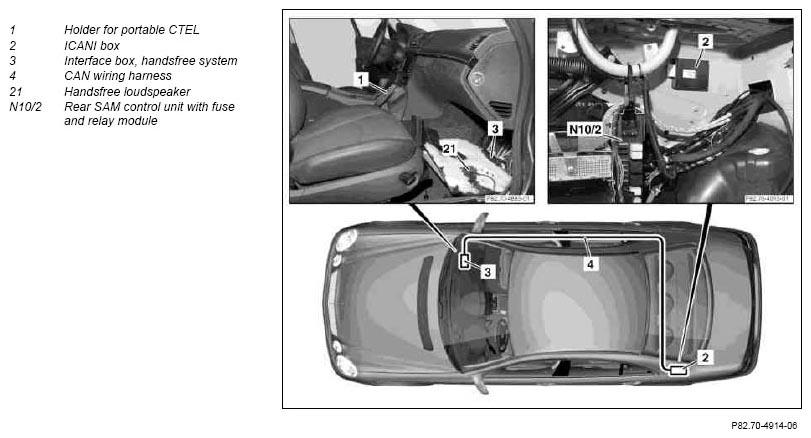

Fig 1: D-Network Cell Phone CAN Wiring Harness Routing Diagram

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove
	Notes on avoiding damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Risk of explosion  caused by oxyhydrogen gas. Risk of poisoning and caustic burns  caused by swallowing battery acid. Risk of injury  through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Pour battery acid only into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
1	Disconnect ground cable of battery
			AR54.10-P-0003T
	Notes on battery	All models	AH54.10-P-0001-01A
2	Remove side paneling in trunk
		Vehicles without  through-loading feature (code 287).	AR68.30-P-4800T
		Vehicles with  through-loading feature (code 287).	AR68.30-P-4800TA
3	Remove cover of control unit carrier plate in luggage compartment
4	Remove rear seat backrest
		Vehicles without  through-loading feature (code 287).	AR91.12-P-1620T
		Vehicles with  through-loading feature (code 287).	AR91.12-P-1620TA
5	Remove paneling on B-pillar	Loosen paneling on right and left only to where the cable duct of the frame floor system is accessible.
			AR68.30-P-4700T
6	Open cable duct of frame floor system on left and right
7	Remove cover below instrument panel (right)
			AR68.10-P-1520T
8	Remove paneling on A-pillar.	Right side only.
		Upper A-pillar paneling	AR68.30-P-4050T
		Footwell paneling	AR68.30-P-4050TA
9	Remove rear bumper
			AR88.20-P-2200T
	Install
10.1	Retrofit antenna	CTEL antenna On vehicles without antenna for CTEL (D and E network), code 354.	AN82.62-P-0001-02TTA
		Glue cartridge (150 ml) for glued windows	*BR00.45-Z-1016-02A
11	Retrofit the CTEL mounting bracket with PSC adapter plug	See installation instructions for accessories included in parts kit.
12	Retrofit hands-free system wiring harness		AZ82.70-P-0005-02TTA
13	Retrofit control unit and interface		AZ82.70-P-0008-01TTA
14	Enable using Star diagnosis	Control units Information and communication ICM Control unit adaptations Variant coding Special equipment Enable telephone.
15	Carry out start-up and function test	Check telephone for proper functioning according to operating instructions.	AZ82.61-P-0001-04B
16	Install remaining parts onto vehicle	Steps 8 up to 1.
