Remove/install rear bumper - AR88.20-P-2200T

MODEL 211.0

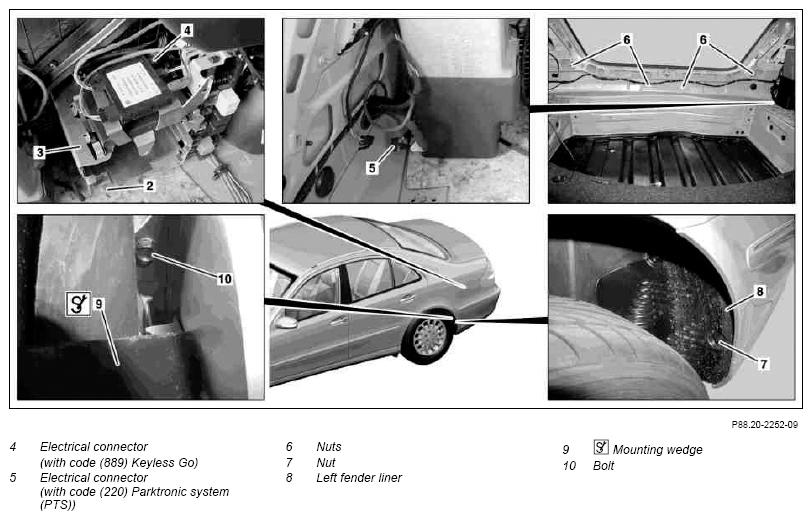

Fig 1: Identifying Rear Bumper Components (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

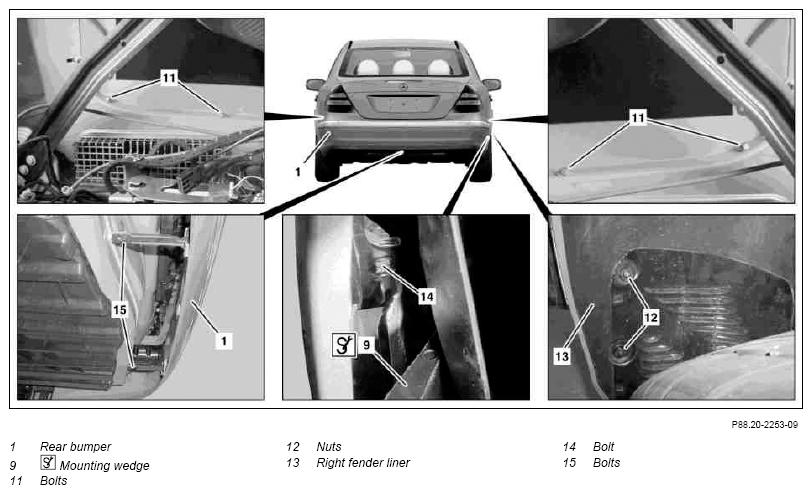

Fig 2: Identifying Rear Bumper Components (2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

MODIFICATION NOTES

23.1.07

Repair method modified. Left and right side paneling in trunk is only loosened.

	Remove/install
1	Remove trim from rear end center assembly		AR68.30-P-4785T
2	Remove spare tire well paneling
3	Loosen left and right side paneling in trunk	On vehicles without code (287) Through-loading feature, except CODE (924) Bivalent natural gas drive	AR68.30-P-4800T
		On vehicles with code (287) Through-loading feature.	AR68.30-P-4800TA
4	Separate electrical connectors (4)	On vehicles with code (889) Keyless Go.
5	Disconnect electrical connectors (5)	On vehicles with code (220) Parktronic system (PTS).
6	Unscrew nuts (6)
7	Loosen pressure reservoir with lines connected and lay down to side.	On vehicles with code (489) Airmatic (semi-active air suspension).
8	Remove bolts (11)
9	Remove nut (7)
10	Loosen left inner fender (8) from fender with assembly wedge (9)	Until screw (10) is accessible.
			Figure
11	Unscrew bolt (10)
12	Unscrew nuts (12)
13	Loosen right inner fender (13) from fender with assembly wedge (9)	Until screw (14) is accessible.
			Figure
14	Unscrew bolt (14)
15	Remove bolts (15)
16	Remove rear bumper (1)
17	Install in the reverse order

Fig 3: Identifying Assembly Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
