Retrofit FSE 12 hands-free system - AZ82.70-P-0011TD
MODEL 211.0##/2## 1# up to 1.6.08 with CODE (523) MB Audio 20 radio except CODE (809) Model year 2009 except CODE (273) Cell phone preinstallation (non-networked), VDA wiring except CODE (494) USA version except CODE (498) Japan version except CODE (924) Bivalent natural gas drive except retrofitted iPod kit, only vehicles with Audio 20 CD radio (not Audio 20 CC radio)

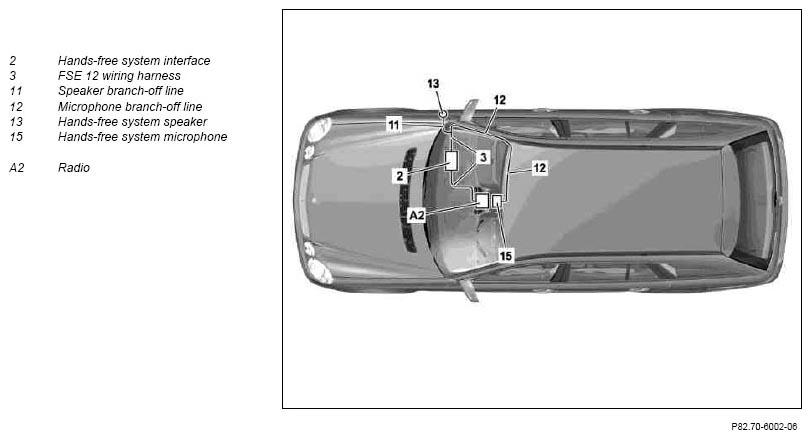

Routing diagram, FSE 12 wiring harness, shown on model 211.2
| Removing | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Disconnect ground line of battery | Model 211.0 | AR54.10-P-0003T |
| Model 211.2 | AR54.10-P-0003TA | ||
| 2 | Remove radio (A2) | AR82.60-P-7502T | |
| 3 | Detach overhead control panel control unit and let hang with connected electrical lines | AR82.20-P-1000T | |
| 4 | Remove A-pillar paneling at top right | AR68.30-P-4050T | |
| 5 | Remove front floor covering (right) | AR68.20-P-2070T | |
| 6 | Detach trim at right B-pillar at bottom until cable duct is accessible | If customer wishes to have a telephone antenna installed in rear bumper. | AR68.30-P-4700T |
| 7.1 | Remove trim at side next to the right rear seat backrest | On model 211.0, if customer wishes to have a telephone antenna installed in rear bumper. | |
| 7.2 | Detach side paneling in left and right rear until antenna line can be routed. | Model 211.2, if customer wishes to have a telephone antenna installed in rear bumper. | AR68.30-P-4780T |
| 8 | Remove front section of load compartment floor | Model 211.2, if customer wishes to have a telephone antenna installed in rear bumper. | AR68.20-P-4811T |
| 9 | Remove rear bumper | If customer wishes to have a telephone antenna installed in rear bumper. | |
| Model 211.0 | AR88.20-P-2200T | ||
| Model 211.2 | AR88.20-P-2200TA | ||
| 10 | Remove covering over control unit plate in luggage compartment | Model 211.0, if customer wishes to have a telephone antenna installed in rear bumper. | |
| 11.1 | Remove center paneling in trunk | On model 211.0 without code (287) Through-loading feature and only if customer wishes to have a telephone antenna installed in rear bumper. | AR68.30-P-4810T |
| 11.2 | Remove side trim in left and right sides of trunk | On model 211.0 with code (287) Through-loading feature and only if customer wishes to have a telephone antenna installed in rear bumper. | AR68.30-P-4800TA |
| Install | |||
| 12 | Retrofit antenna | If customer wishes to have a telephone antenna installed in rear bumper. | AN82.62-P-0001-02TTA |
| Glue cartridge (150 ml) for glued windows | *BR00.45-Z-1016-02A | ||
| 13 | Retrofit the telephone console with PSC adapter | ||
| 14 | Retrofit hands-free system wiring harness 12 (3) | AZ82.70-P-0005-02TD | |
| 15 | Retrofit hands-free system interface (2) | AZ82.70-P-0001-07T | |
| 16 | Retrofit hands-free system microphone (15) | AZ82.70-P-0005-08TA | |
| 17 | Retrofit hands-free system speaker (13) | AZ82.70-P-0001-03TA | |
| 18 | Install remaining parts onto vehicle | ||
| 19 | Carry out variant coding with the Diagnosis Assistance System by means of Software Calibration Number (SCN) | AN82.61-P-0001-05T | |
| 20 | Carry out start-up and function test |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1016-02A | Glue cartridge (150 ml) for glued windows | - |
PARTS ORDERING NOTES
| Part no. | Designation | Quantity |
|---|---|---|
| see Odus | Hands-free system FSE 12 | 1 |
| see Odus | Cradle for customer-specific mobile phone | 1 |
| see Odus | Telephone console with PSC adapter (actual unit ordered depends on customer request, vehicle model and equipment) | 1 |
| If telephone antenna in rear bumper requested by customer, also: | ||
| see Odus | Antenna (telephone antenna for rear bumper) | 1 |
| Also if customer requests a telephone antenna in rear bumper On vehicles without code (220) Parktronic system (PTS): | ||
| A001 545 53 45 | Cable grommet (for antenna line) | 1 |
