Replace rubber mount for compressor - AR32.22-P-2011T

MODEL 211.0 /2 with CODE (489) AIRmatic (semi-active air suspension)

MODEL 211.6

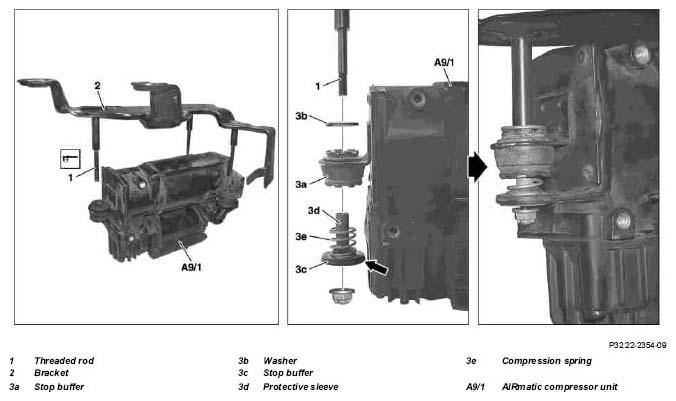

Fig 1: Identifying Components For Rubber Mount Of Compressor

	Removal
1	Remove AIRmatic compressor unit (A9/1)	Model 211.0/2 with Airmatic (semi-active air suspension) code 489	AR32.22-P-2001T
		Model 211.2 except Airmatic model 211.6	AR32.22-P-2001TA
	Measure
2	Use sliding gauge to measure thread diameter of a threaded rod (1) on the bracket (2) for the AIRmatic compressor unit (A9/1)	With thread M5, replace bracket (2) of AIRmatic compressor unit (A9/1).	AR32.22-P-2009T
3	Push stop buffer (3a) out of eyelet on AIRmatic compressor unit (A9/1)	Replace all stop buffer (3a) and attaching parts on the AIRmatic compressor unit (A9/1) If reusing the stop buffer and attaching parts (3a) knocking and thumping noise may occur.
	Install
4	Insert stop buffer (3a) into eyelet on AIRmatic compressor unit (A9/1)	The raised section of the stop buffer (3a) must face downwards. The groove of the stop buffer (3a) must latch all round its total circumference into the eyelet on the AIRmatic compressor unit (A9/1).
5	Fit shim (3b) onto stop buffer (3a)
6	Slide stop buffer (3c) onto protective sleeve (3d)	The outer lip of the stop buffer (3c) must enclose the washer of the protective sleeve (3d) around its total circumference (arrow).
7	Mount push spring (3e) onto protective sleeve (3d)	The push spring (3e) is centered by a demolding on the stop buffer (3c).
8	Install AIRmatic compressor unit (A9/1)	Model 211.0/2 with Airmatic (semi-active air suspension) code 489	AR32.22-P-2001T
		Model 211.2 except Airmatic model 211.6	AR32.22-P-2001TA
