Remove/install the suspension strut - AR32.25-P-1017TA: Notes

MODEL 211.0 /2 (except 211.08 /09 /28 /29) with CODE (489) Airmatic (semi-active air suspension)

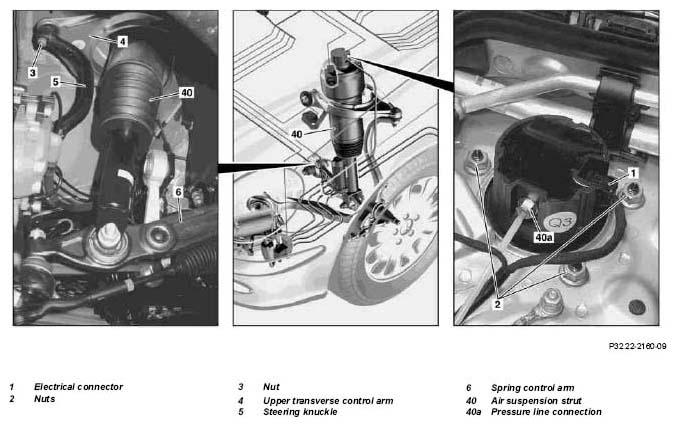

Fig 1: Identifying Suspension Strut Components - Shown On Left Suspension Strut
G04984684

Shown on left suspension strut

MODIFICATION NOTES

11.12.06 Self-locking nut, upper wishbone follower joint to steering knuckle Model 211 *BA33.20-P-1018-01A
REMOVINGINSTALLING Remove/install
DANGER Risk of injury caused by moving parts that can pinch, crush or  , in extreme cases, even sever  extremities. Keep all body parts and limbs away from moving mechanical components. AS00.00-Z-0009-01A
NOTES Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
NOTES When working on the front-end assembly, be careful not to scratch, mark or notch the surfaces of aluminum parts. Otherwise the service life of the parts will be affected
IMPORTANTInstallation  Only tighten nuts and bolts of chassis components when vehicle is in a ready to drive condition.
1 Position wheels straight ahead.
2 Remove front wheel
REFER TO MAINTENANCE Remove/install wheels   AP40.10-P-4050Z
3 Relieve the pressure from the air suspension strut (40) using STAR DIAGNOSIS until the residual pressure is reached IMPORTANT Residual pressure in air suspension strut up to 3.5 bar
NOTES Notes on AIRmatic   AH32.22-P-1000-02T
4 Disconnect electrical connector (1) at the top of the shift valve
5 Detach pressure line connection (40a) IMPORTANT Plug the pressure line for the duration of the repair operations.
    IMPORTANTInstallation:  Before assembly, damaged pressure line connections or damaged pressure lines must be repaired. AR32.22-P-2001-02I
    TORQUE SPECIFICATION *BA32.25-P-1003-04B
    SPECIAL TOOL Figure
6 Unscrew nuts (2) of air suspension strut (40) to front end TORQUE SPECIFICATION *BA32.25-P-1001-04B
7 Remove fender liner front section in front fender   AR88.10-P-1310T
8 Disconnect electrical connector for damping valve unit   AR32.22-P-1500-01TV
9 Unscrew nut (3) from follower joint for upper transverse control arm (4) at steering knuckle (5) TORQUE SPECIFICATION *BA33.20-P-1018-01A
10 Press follower joint out of steering knuckle (5) IMPORTANT To prevent the steering knuckle from folding down too low, attach a support strap between the upper control arm (4) and wheel carrier. AR33.20-P-0500-01N
11 Detach air suspension strut (40) from spring control arm (6) IMPORTANTInstallation:  Tighten the threaded connection in the curb condition at normal vehicle level.
12 Press down spring control arm (6), detach air suspension strut (40) from spring control arm (6) and remove sideways and downwards IMPORTANT When replacing or reinstalling the air suspension strut, check the condition of the air suspension strut. AR32.25-P-1017-02T
13 Install in the reverse order
14 Charge relevant air suspension strut (40) using STAR DIAGNOSIS to 5 bar NOTES The wheels must not make any contact with the ground when filling as when filling in the jounce condition the air spring bellows in the spring element will be destroyed.
15 Tighten threaded connection of air suspension struts (40) on spring control arm (6) to curb condition IMPORTANT Select the normal vehicle level
    TORQUE SPECIFICATION *BA32.25-P-1007-04B
16 Check AIRmatic for leaks.   AR32.22-P-8100T
TORQUE SPECIFICATION STRUTS

Number Designation Model 211 Airmatic
BA32.25-P-1001-04B Nut, front suspension strut to front end Nm 25
BA32.25-P-1003-04B Air suspension pressure line to front suspension strut Nm 2
BA32.25-P-1007-04B Nut, front suspension strut to spring control arm Nm 165
TORQUE SPECIFICATION WHEEL LOCATION, HUB

Number Designation Model 211 except 211.08/09/28/29
BA33.20-P-1018-01A Self-locking nut, upper wishbone follower joint to steering knuckle Stage 1 Nm 20
Stage 2 ∠° 90
Fig 2: Identifying Wrench Socket (211 589 00 09 00)
G04984685
