Remove/install fender liner front section in front fender - AR88.10-P-1310T
MODEL 211.0/ 2/ 6
| Remove/Install | |||
|---|---|---|---|
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between the columns of the hydraulic hoist and position the four support plates below the hoist support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Raise vehicle with lifting platform | ||
| 2 | Turn left or right wheel of front axle to full lock | ||
| 3 | Remove tie strap (2) and line bracket (3) | ||
| 4 | Remove expanding clip (4) | ||
| 5 | Unscrew bolts (5) | ||
| 6 | Unscrew nuts (6) | ||
| 7 | Remove bolt (7) | ||
| 8 | Loosen rear fender liner section approx. 20 cm out of fender with mounting wedge | ||

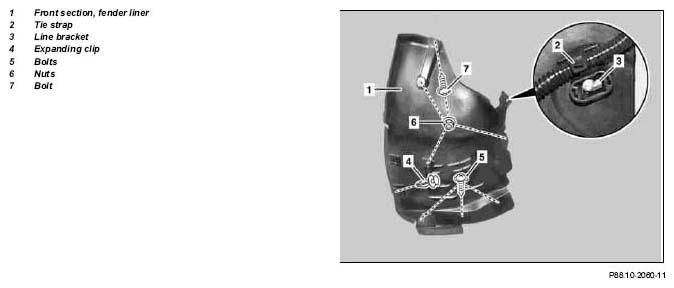

| Figure | |||
| 9 | Remove front fender liner section (1) from fender | ||
| 10 | Install in the reverse order |
