Remove/install inner tie rod with axial joint - AR46.40-P-0201T

MODEL 211 (except 211.08 /09 /28 /29)

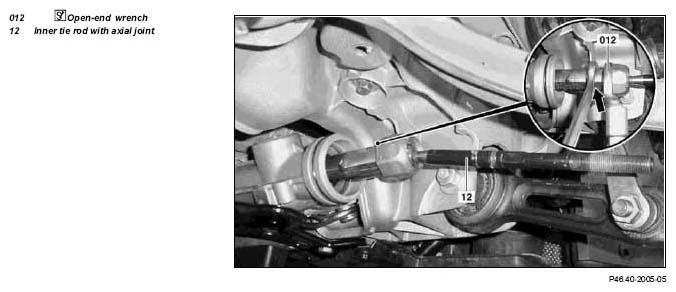

Fig 1: Identifying Inner Tie Rod With Axial Joint And Open-End Wrench

	Remove/install
1	Remove tie rod		AR46.40-P-0200T
2	Remove bellows		AR46.40-P-0400T
3	Counter-hold l rack using open-end wrench (012) (arrow)		Figure
4	Detach inner tie rod (12) with axial joint	Do not use force (hammer blows, excessive leverage) otherwise you may damage the steering gear.
			*BA46.40-P-1003-01E
5	Install in the reverse order

TIE ROD

Number	Designation		Model 211 except 211.08/09/28/29
BA46.40-P-1003-01E	Inner tie rod with axial joint to rack	Nm	110

Fig 2: Identifying Open End Wrench (201 589 00 01 00)
