Removing, installing auxiliary battery - AR54.10-P-0007TX
MODEL 219.3 up to 31.5.06
| Remove/install | |||
| 1 | Disconnect battery ground cable | AR54.10-P-0003TX | |
| 2 | Open engine hood and raise to vertical position | AR88.40-P-1000TX | |

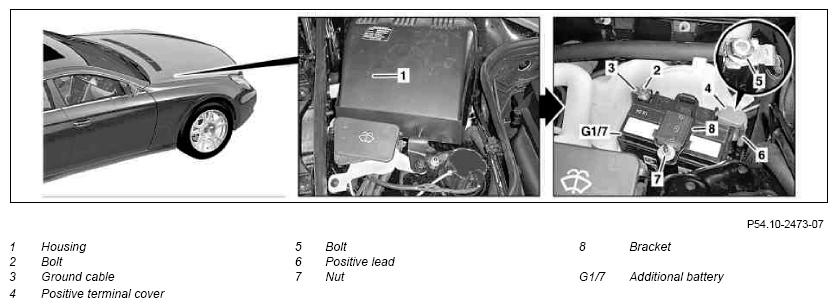

| 3 | Remove housing (1) | ||
| 4 | Unscrew bolt (2) of ground line (3) and remove ground line (3) | *BA54.10-P-1029-01C | |
| 5 | Open positive terminal cover (4) | ||
| 6 | Unscrew bolt (5) of positive line (6) and remove positive line (6) | *BA54.10-P-1029-01C | |
| 7 | Unscrew nut (7) and fold bracket (8) upward | *BA54.10-P-1014-01C | |
| 8 | Remove additional battery (G1/7) | ||
| 9 | Install in the reverse order |
BATTERY
| Number | Designation | Model 219.3 | ||
|---|---|---|---|---|
| BA54.10-P-1014-01C | Nut, bracket for additional battery | M6 | Nm | 3 |
| BA54.10-P-1029-01C | Bolt, battery cable to battery terminal on additional battery | M6 | Nm | 3 |
