Disconnect/connect battery ground line - AR54.10-P-0003TX

MODEL 219.3

Shown on vehicle up to 31.5.06

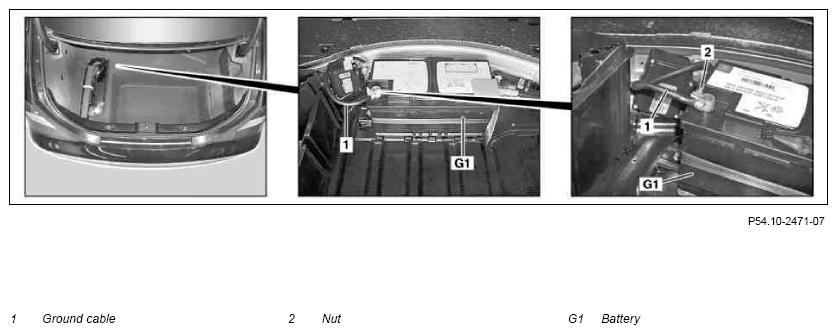

Fig 1: Identifying Battery Ground Line Disconnect/Connect Components - Shown On Vehicle Up To 31.5.06

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of explosion  from explosive gas. Risk of poisoning and caustic burns  from swallowing battery electrolyte. Risk of injury  through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fires, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
	Notes on battery		AH54.10-P-0001-01A
1	Switch off the ignition and remove the transmitter key from the EIS control unit	On vehicles with code (889) KEYLESS-GO: Press KEYLESS-GO start/stop button repeatedly until ignition is switched off. Remove the transmitter key from the vehicle and store at a location that is beyond the transmitter range (at least 2 m).
2	Remove trunk floor covering from trunk
3	Remove spare tire cover or spare tire well trim from the luggage compartment	Depending on vehicle equipment.
4	Disconnect electrical connector from battery sensor	MODEL 219.3 as of 6/1/06
5	Loosen nut (2) and remove ground line (1) from battery (G1)	Nut, battery line to negative terminal/positive terminal	*BA54.10-P-1012-01C
6	Install in the reverse order
7	Perform basic programming	Perform basic programming	AR00.19-P-0200TX

BATTERY

Number	Designation			MODEL 219.3
BA54.10-P-1012-01C	Nut, battery line to negative terminal/positive terminal	M6	Nm	6
