Remove/install rear axle brake caliper - AR42.10-P-0080TX
MODEL 219
MODIFICATION NOTES
| 26.10.04 | Disconnect ground line from battery removed |
| Remove/install | |||
| Risk of injury caused by body parts being jammed or crushed. Risk of injury to skin and eyes caused by brake fluid spraying out at high pressure when working on the SBC brake system | Deactivate SBC brake system using STAR DIAGNOSIS. | AS42.46-Z-0001-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| 1 | Deactivate SBC brake system using STAR DIAGNOSIS. | Vehicles with Sensotronic Brake Control (SBC) Select menu item "SBC Sensotronic Brake Control"/"Deactivate 'SBC' system". Then process all the individual steps from top to bottom. |
|
| 2 | Remove brake hose | AR42.10-P-0013TX | |

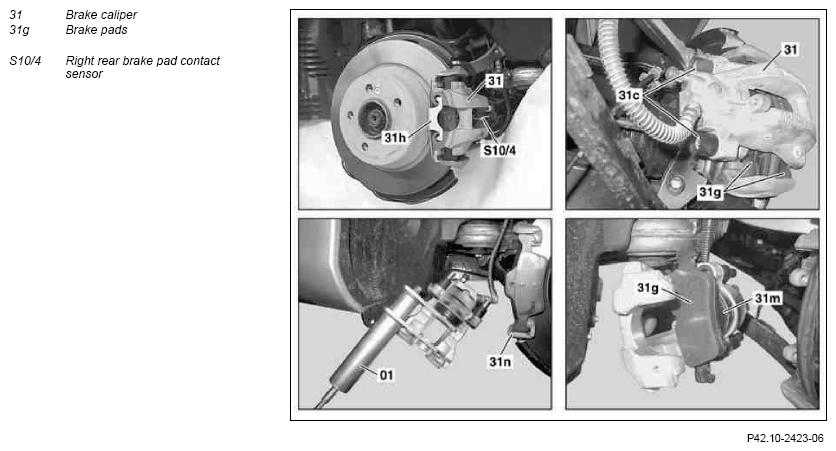

| 3 | Detach connector of brake pad contact sensor (S10/4) from brake caliper (31) | *BA42.10-P-1002-12B | |
| 4 | Remove brake pads (31g) | Model 219.322/354/356/357/372/375 | AR42.10-P-1700TX |
| Model 219.376/377 | AR42.10-P-1700TZ | ||
| 5 | Remove bolts of brake caliper (31) on wheel carrier and remove brake caliper (31) | *BA42.10-P-1004-12B | |
| *BA42.10-P-1005-12B | |||
| 6 | Install in the reverse order | ||
| 7.1 | Bleed brake system with STAR DIAGNOSIS | Vehicles with Sensotronic Brake Control (SBC) Select menu item "Initial startup after repair"/"Exchanging brake calipers". Then process all the individual steps from top to bottom. |
AR42.10-P-0012TX |
| 7.2 | Bleed brake system | Vehicles with Adaptive Brake (ABR) | AR42.10-P-0010T |
REAR AXLE BRAKE CALIPER
| Number | Designation | Model 219 | |
|---|---|---|---|
| BA42.10-P-1002-12B | Bolt, brake pad contact sensor to brake caliper | Nm | 8 |
| BA42.10-P-1004-12B | Self-locking bolt of floating caliper to wheel carrier | Nm | 115 |
| BA42.10-P-1005-12B | Self-locking bolt, fixed caliper to wheel carrier | Nm | 180 |
