Remove/install dashboard lower section on driver side - AR68.10-P-1505TX
Model 219.3

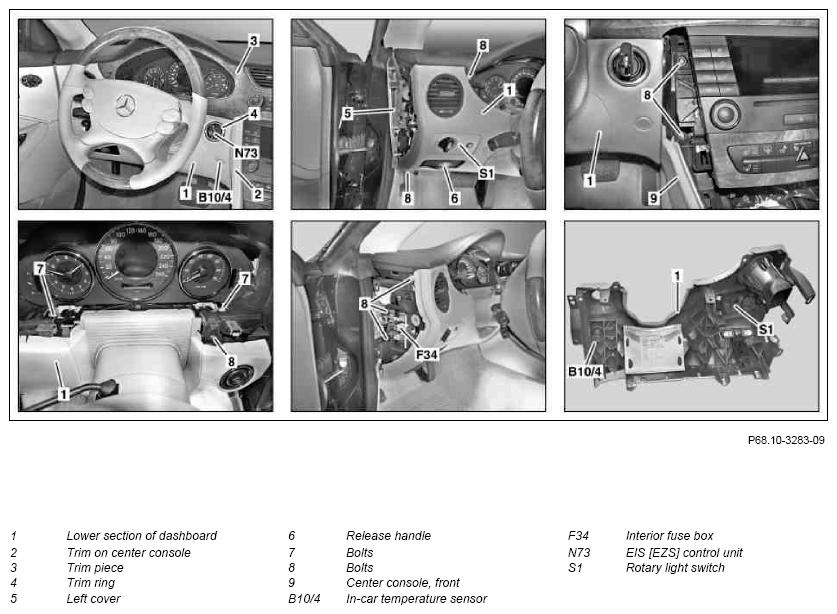

Shown on vehicle as of 01.06.06 with code 494 (USA version)
| Risk of fire and explosion caused by machining/treating magnesium components | Keep away from ignition sources and open flames. | AS60.00-Z-0006-01R | |
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical components to temperatures above 100°C or 212. Disconnect current supply when working on such components. |
AS91.00-Z-0008-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Information on machining/treating magnesium components | AH60.00-P-0023-01R | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Move steering wheel to stop at top | ||
| 2 | Switch on ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 3 | Disconnect battery ground line | AR54.10-P-0003TX | |
| 4 | Remove left cover below instrument panel | AR68.10-P-1500TX | |
| 5 | Remove paneling on center console (2) | AR68.20-P-5169TX | |
| 6 | Remove trim piece (3) from instrument panel | AR68.10-P-1180TX | |
| 7 | Press trim ring (4) with claw-type wrench and EZS control unit (N73) toward front out of instrument panel bottom section (1) | Fig 4 | |
| 8 | Unclip left cover (5) from instrument panel using assembly wedge | Figure | |
| 9 | Unhook cable from release handle (6) | ||
| 10 | Remove bolts (7) | ||
| 11 | Remove bolt (8) | ||

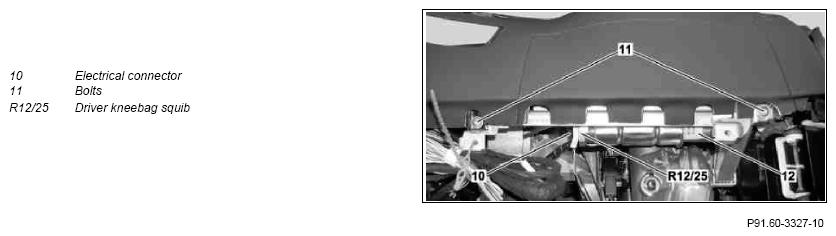

| 12 | Unlock electrical connectors (10) from driver kneebag squib (R12/25) and disconnect | Model 219.3 as of 6/1/06 with code 494 (US version) | |
| 13 | Remove screw/bolts (11) | Model 219.3 as of 6/1/06 with code 494 (US version) | |
| *BA91.60-P-1005-01G | |||
| 14 | Unhook instrument panel bottom section (1) from front center console (9) and pull toward rear until electrical connectors are accessible | ||
| 15 | Unlock electrical connectors from rotary light switch (S1) and disconnect | ||
| 16 | Unlock electrical connector from in-car temperature sensor (B10/4) and disconnect | ||
| 17 | Remove interior fuse box (F34) from instrument panel bottom section (1) and lay down to side with lines connected | ||
| 18 | Remove dashboard bottom section (1) | ||
| 19 | Install in the reverse order | ||
| 20 | Transfer driver kneebag | Model 219.3 as of 6/1/06 with code 494 (US version) When replacing dashboard lower section (1). |
|
| AR91.60-P-0200TX | |||
| Check | |||
| 21 | Carry out function check |
AIRBAG
| Number | Designation | MODEL 219.3 with CODE 494 | |
|---|---|---|---|
| BA91.60-P-1005-01G | Bolt, kneebag to strut | Nm | 4 |
